Home > Products > 2 trim pot trimming potentiometer > HW-115S-1 Open-Type Trimmer Open Type With All Kinds of Usage Trimming Potentiometer Trimmer Spanish Potentiometer

HW-115S-1 Open-Type Trimmer Open Type With All Kinds of Usage Trimming Potentiometer Trimmer Spanish Potentiometer

FOB Price

US$ 0.01 - 0.25 / Piece

1000 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Howang
Model Number	HW-115S-1	Type	Trimming Potentiometer
Technology	Carbon Film	Resistance	500 ~1M
Resistance Tolerance	10%	Rated Power	0.05W
Max. Operating Voltage	AC 50V/DC 10V	Operating Temperature	-20 ~ +70

Product Description

Introduction:

1.Sing-turn/Carbon/Open Frame.

2.Horziontal and vertical adjustment.

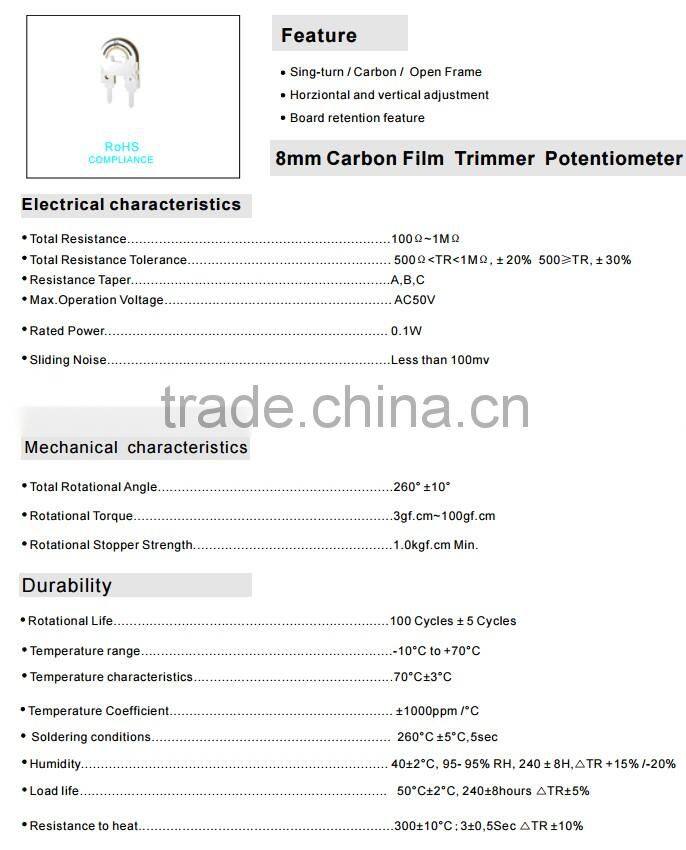

Electrical characteristics
Total Resistance	100Ω~1MΩ
Total Resistance Tolerance	500Ω<TR<1MΩ, ±20%; T?500Ω, ±30%
Resistance Taper	B taper
Max operating Voltage	AC 50V
Rated Power	0.1W
Sliding Noise	Less than 300mV
Residual resistance value	Less than 10Ω.
Contact resistance	5% or less
Mechanical characteristics
Total Rotational Angle	260°±10°
Rotational Torque	3gf.cm~100gf.cm
Rotational Stopper Strength	1.0Kgf.cm Min
Durability
Rotational Life	100 Cycles±5Cycles
Temperature Range	-10℃~+70℃
Temperature Coefficient	±1000ppm/℃
Humidity	40±2℃,95-95%RH,240±8H,TR+15%/-20%
Load life	50℃ ±2℃,240±8 hours ,TR±5%
Resistance to heat	300±10℃,3±0.5Sec,TR±10%

HOW to order?

Assembly Department

	The 1st manufacturing section Production : F-091 Series ; F-092 Series; F-093 Series; F-094 Series; F-095 Series; F-24K Series; F-081 Series; F-082 Series; F-131K Series; P270 Series; P160 Series; JM10K Series; JN10K Series; JP10K Series; FSR08 Series; FSR10 Series; J08K Series Rotary Potentiometer, Switch and so on Monthly Output: 12,000,000 pcs Typical Application: Mixing consoles and electronic musical instruments, DVD player/recorders in car, game consoles and flat panel TV, electronic toy controllers ,Remote controllers for audio system and TVS and so on.

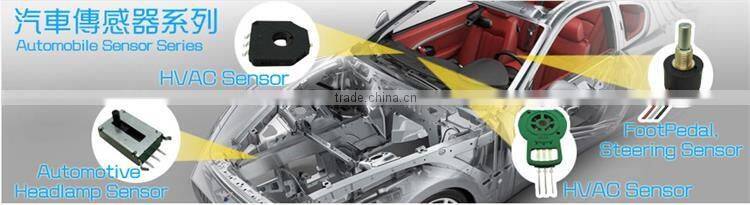

	The 2rd manufacturing section: Production: 1.F-08E Series F-11E Series; F-12E Series; F-16E Series rotary encoder and so on 2. Fxx92 Series; F05G Series; F035G Series; Fxx31 Series; Fxx05 Series; Fxx06 Series; Fxx43 Series; Fxx45 Series; Fxx2G Series; F10008GP Series; Fxx46 Series slide potentiometer and so on 3. FSE1001, FSE1101, FSE2801, FSE07 sensor potentiometer and so on Monthly Output: 5,000,000 pcs Typical Application: 1. Mixing consoles, DVD play / Recorder, Various AV equipment, Navigation systems in car and so on 2. Electronic musical instruments, Dimmer .protable audio and various audio equipment and so on 3. Automobile accessories.

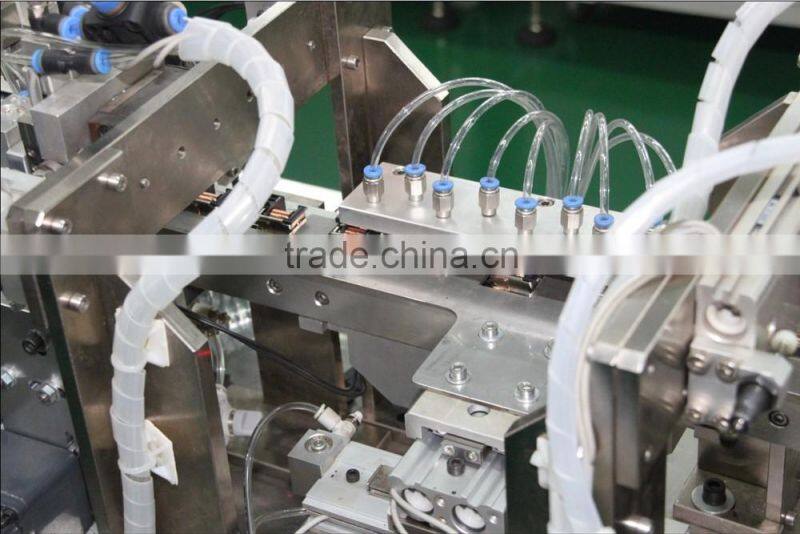

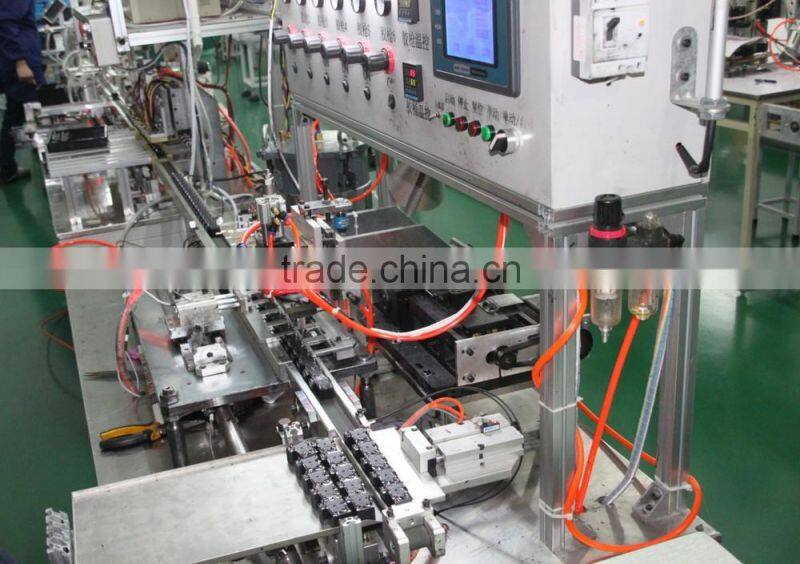

Automatic Assembling Machines

Stable and consistent quality

High efficiency

Low defective rate

Contact

shippment & payment:

we have our own manufacture factory and the experrienced manufacture team in Huizhou.

we will give you the lower price and the first-class quality.

This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days

Delivery time: 12 days

Payment terms: 30% deposit before production, 70% balance before shipment.
