HW-TB1001V01 Variable 47k Resistor Trimpot Trimmer Potentiometer Piher Acp Trimpot Resistor
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
HW-637V Series Open-Type Trimmer Open Type With All Kinds of Usage Trimming Potentiometer Trimmer Spanish Potentiometer
-
HW-115S-1 Open-Type Trimmer Open Type With All Kinds of Usage Trimming Potentiometer Trimmer Spanish Potentiometer
-
HW-TB1001H01 Variable 47k Resistor Trimpot Trimmer Potentiometer Piher Acp Trimpot Resistor
-
HW-085B Open-Type Trimmer Open Type With All Kinds of Usage Trimming Potentiometer Trimmer Spanish Potentiometer
-
F11 Series Open-Type Trimmer Open Type With All Kinds of Usage Trimming Potentiometer Trimmer Spanish Potentiometer
-
F08 Series Open-Type Trimmer Open Type With All Kinds of Usage Trimming Potentiometer Trimmer Spanish Potentiometer
Product Details
| Place of Origin | Guangdong, China | Brand Name | Howang | |
| Model Number | HW-TB1001V01 | Type | Trimming Potentiometer | |
| Technology | Carbon Film | Resistance | 500 ~1M | |
| Resistance Tolerance | 10% | Rated Power | 0.05W | |
| Max. Operating Voltage | AC 50V/DC 10V | Operating Temperature | -20 ~ +70 |
Product Description
Introduction:
1.Carbon resistive element.
2.Dust proof enclosure.
3.Housing available in self extinguishable plastic(UL94V-0).

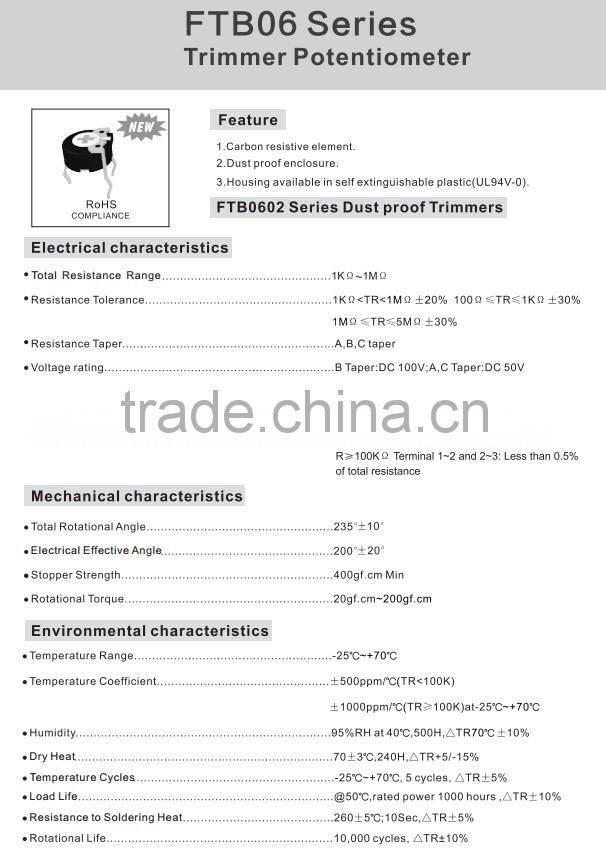

| Electrical characteristics | |
| Total resistance range | 1KΩ~1MΩ |
| Resistance Tolerance | 1KΩ<TR<1MΩ±20% 100Ω<TR<1KΩ±30% 1MΩ<TR<5MΩ±30% |
| Resistance Taper | A, B, C taper |
| Voltage rating | B Taper: DC 100V; A, C Taper: DC 50V |
| Rower rating | B Taper:@50℃,0.1W;A,C Taper:@50℃,0.05W |
| Contact Noise | 10 Max (TR<1MΩ); 25% Max (TR>1MΩ) |
| Residual resistance value | R<100KΩTerminal 1~2and 2~3:10ΩMax R>100KΩTerminal 1~2and 2~3:Less than 0.5% of total resistance |

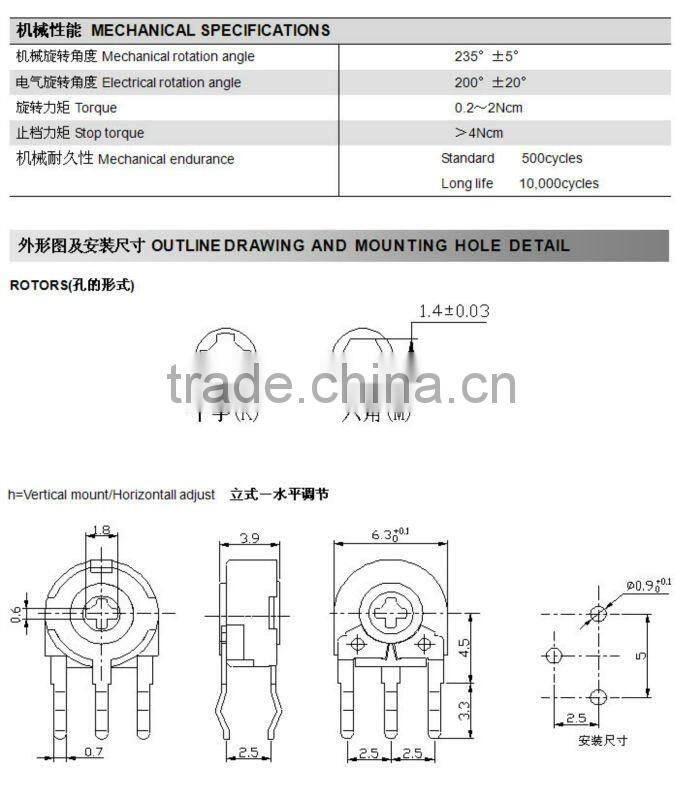

| Mechanical characteristics | |
| Total Rotational Angle | 235°±10° |
| Electrical effective angle | 200°±20° |
| Stopper Strength | 400gf.cm Min |
| Rotational Torque | 20gf.cm~200gf.cm |
| Environmental characteristics | |
| Temperature Range | -25℃~+70℃ |
| Temperature Coefficient | ±500ppm/℃(TR<100K) ±1000ppm/℃(TR>100K)at-25℃~+70℃ |
| Humidity | 95%RH at 40℃,500H,TR70℃ ±10% |
| Dry heat | 70±3℃,240H,TR+5/-15% |
| Temperature cycles | -25℃ ~+70℃ , 5 cycles, TR±5% |
| Load life | @50℃,rated power 1000 hours, TR±10% |
| Resistance to soldering heat | 260±5℃;10Sec, TR±5% |
| Rotational Life | 10,000 cycles, TR±10% |

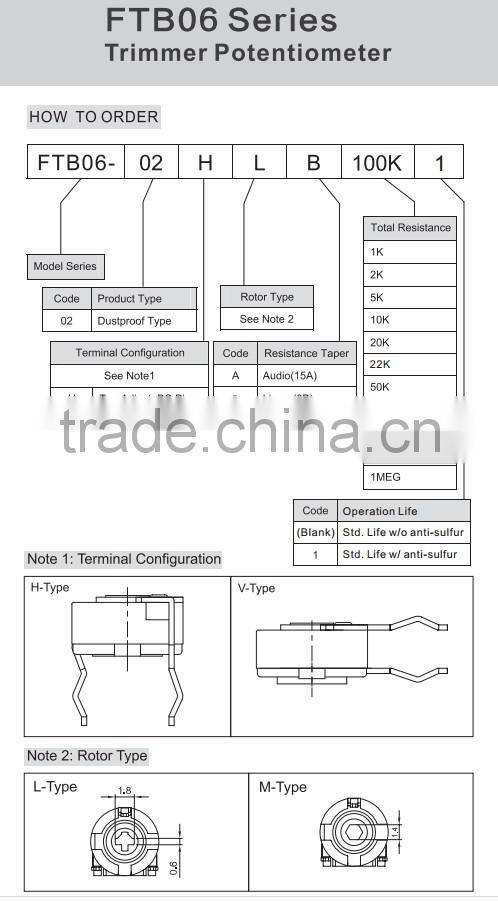

HOW to order?
shippment & payment:

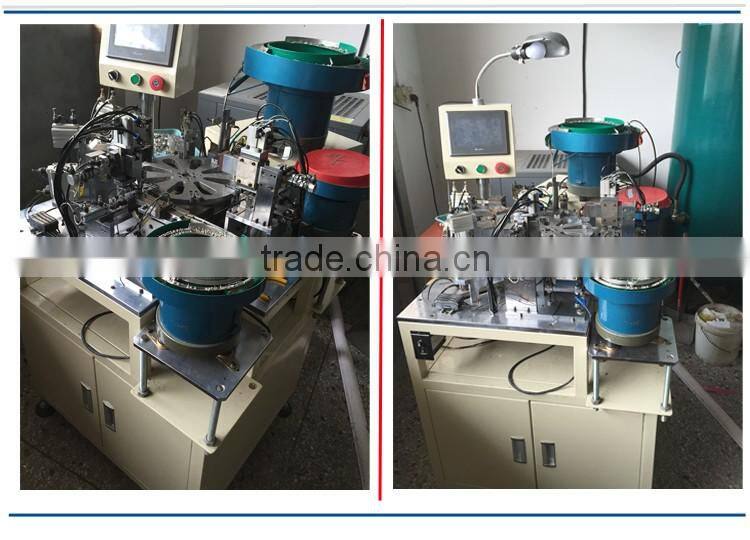

we have our own manufacture factory and the experrienced manufacture team in Huizhou.
we will give you the lower price and the first-class quality.
This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days
Delivery time: 12 days
Payment terms: 30% deposit before production, 70% balance before shipment.
