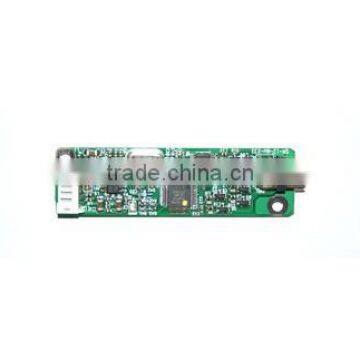

G/G 8-Wire Touch Screen Controller (8 wire RS232)

Brand Name	TouchKit		Model Number	TK0801
Use	Universal		Place of Origin	Guangdong, China

Specifications

1.Easy to Install and Use and fast Response;
2.Sell with resistive touch screen
3.Compatible with different OS

Touch controller,4wire-Touch screen controller,ITO Touch Screen controller,Touch Panel controller-TouchKit Manufactures

Hardware Specifications

Power Requirements +5VDC (max. 100mA, typical 70mA, 50mV peak to peak max ripple)
Operating Temperature 0 to 50 degrees Centigrade
Storage Temperature -40 to 80 degrees Centigrade
Relative Humidity 95% at 60 degrees Centigrade
Protocol 1. RS232: 9600 bauds, None parity, 8 data bits, 1 stop bit
2. USB: USB 1.1 Low speed
3. PS2: PS2 mouse

Resolution 2048 x 2048
Accuracy Tolerance Max. +/- 0.5% tolerance
Report Rate 1. RS232: Max. 160 points/sec
2. USB: Max. 160 points/sec
3. PS2: Max. 140 points/sec


Response Time Max. 35 ms
Regulatory Approvals FCC-B, CE
Pin Out Definition X+Ref, Y+Ref, X-Ref, Y-Ref, X+, Y+, X-, Y-
Panel Resistance 200 ~ 900 ohm (pin to pin on the same layer)


Software Features

Calibration Fast Full oriental 4 points position
Compensation 1. Accuracy 25 points linearity position
2. Edge compensation

Draw Test Position and linearity verification
Controller Setting 1. Support multiple controllers
2. Dynamical add/ remove controllers
3. Change controller interface without reboot


Languages Support 10 languages for Windows
Mouse Emulator 1. Right/ left button emulation
2. Click/ drawing mode

Sound Notification 1. No sound
2. Touch down
3. Touch up


Double Click 1. Configurable double click speed
2. Configurable double click area

OS Support 1. Windows 95/ 98/ ME/ NT4/ 2000/ XP/ XP Tablet PC edition
  2. Windows CE 2.12/ 3.0/ .net/ 5.0
  3. Linux (up to Kernel 2.6)
  4. MS-DOS: support display resolution: 320x200, 640x200,
    640x350, 640x480, 800x600, 1024x768 and 1280x1024
  5. iMac 9.0/ OS X
COM Port Support 1. Support COM1~COM256 for Windows and Linux
2. Support COM1~COM8 for DOS

Display Support 1. Support monitor/ display rotation
2. Support multiple monitors
3. Support split monitor
