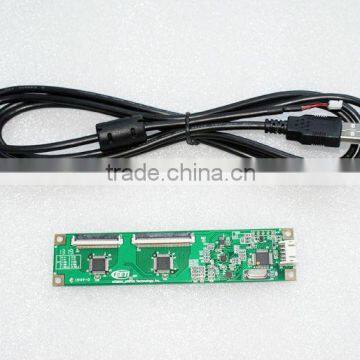

EETI Solution Touch Panel Controller UE01/UE02
US$ 1 - 100
/ Piece
1 Piece(Min. Order)
- GUANGZHOU
- T/T D/P D/A Credit Card PayPal
You May Like
-
TouchKit 15" Capacitive Touch Screen with Slim Cover Frame/Multi-Touch Panel for LCD Monitor
-
multi capacitive touch panel
-
TouchKit Capacitive Touch Panel Controller With USB Cable
-
G/G Capacitive Touch Screen Controller Touch Panel Controller UE01/UE02
-
Touch Screen Controller USB/RS232/I2C
-
G/G 8-Wire Touch Screen Controller (8 wire RS232)
Product Details
| Brand Name | TouchKit | Model Number | UE01 | |
| Use | Universal | Place of Origin | Guangdong, China |
Product Description
Specifications
1.Easy to Install and Use and fast Response;2.Support 1 to 10 Points Touch;
3.Compatible with different OS
Function:
For the realization of touch screen with the customer between the host signal conversion,
to achieve this through a virtual mouse and keyboard to guest host operation.
Environment Conditions:
| Operating temperature & Humidity | -20°C-+85°C |
| Storage temperature & Humidity | -40°C-+100°C |
| Relative Humidity | 90% RH at 60°C |
Electrical Characteristics:
(TA=40 to +70°C Regin=5.0V unless otherwise specified)
| Interface to Host/Master | USB, 4 wire, 2.0 Full speed |
| Supply Voltage | USB,5V DC |
| Power consumption(mA) | Active Mode:<15mA,Idle Mode:5mA |
| Report rate | 10Points Touch:80Hz |
| Oscillator Frequency | 12MHz |
| Channels of Panel | Max. X:78, Y:62 channels |
| Support Points | 1-10 Points |
| Linearity | 1PT:+/- 1mm,10PT:+/- 2.5mm |
| Response Time | <10ms |
| Min. Report Rate | 100 points/sec (Target, Need formal test report) |
| Max. operating frequency | 100 MHz |
| Operating system | Windows7/Windows8/Win XP... |
Pin Assignments/PIN:
| Pin | Name | Type | Description |
| 1 | DM | Signal | USB D- Signal |
| 2 | DP | Signal | USB D+ Signal |
| 3 | GND | GND | Ground |
| 4 | VCC | USB 5VDC | Supply Voltage |
| 5 | GND | GND | Ground |
system parameter | |
| Electrical Characteristics | |
| Interface to Host/Master | USB, 4 wire, 2.0 Full speed |
| Supply Voltage | USB,5V DC |
| Power consumption(mA) | Active Mode:<15mA,Idle Mode:5mA |
| Report rate | 10Points Touch:80Hz |
| Oscillator Frequency | 12MHz |
| Channels of Panel | Max. X:78, Y:62 channels |
| Support Points | 1-10 Points |
| Linearity | 1PT:+/- 1mm,10PT:+/- 2.5mm |
| Response Time | <10ms |
| Min. Report Rate | 100 points/sec (Target, Need formal test report) |
| Max. operating frequency | 100 MHz |
| Operating system | Windows7,Windows8,Win XP…… |
| Environment Conditions | |
| Operating temperature & Humidity | -20°C-+85°C |
| Storage temperature & Humidity | -40°C-+100°C |
| Relative Humidity | 90% RH at 60°C |
