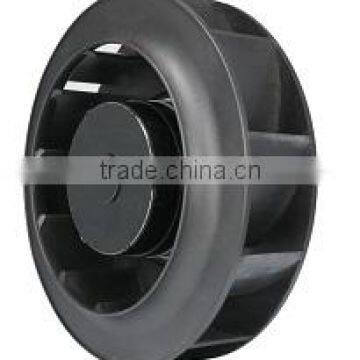

Taiwan TUV UL CE ROHS Certified AC Centrifugal Cooling Fan With Backward Curved Blades in Big Size in Dia250x94mm
- Keelung Taiwan
- T/T L/C D/P D/A
You May Like
-
Taiwan TUV UL CE ROHS Certified AC Centrifugal Cooling Fan With Backward Curved Blades in Big Size in Dia225x101mm
-
Taiwan TUV UL CE ROHS Certified AC Centrifugal Cooling Fan With Backward Curved Blades in Big Size in Dia225x99mm
-
Taiwan TUV UL CE ROHS Certified AC Centrifugal Cooling Fan With Backward Curved Blades in Big Size in Dia220x76mm
-
Taiwan TUV UL CE ROHS Certified IP56 Dual Speed AC Centrifugal Cooling Fan Cooling in Blades Dia.190x67mm
-
Taiwan TUV UL CE ROHS Certified IP56 Dual Speed AC Centrifugal Cooling Fan Cooling in Blades Dia175x85mm
-
Taiwan TUV UL CE ROHS Certified IP56 Dual Speed AC Centrifugal Cooling Fan Cooling in Dia175x67mm
Product Details
| Electric Current Type | AC | Blade Material | Other, Impeller & flange glass-fiber reinforced PA66 | |
| Mounting | Other | Place of Origin | Taiwan, China | |
| Brand Name | EA | Model Number | EAACPFA250GAN | |
| Power | 103-148 W | Voltage | 100-240 V | |
| Air Volume | 620/650 CFM | Speed | 2650/2750 RPM | |
| Certification | CCC, CE, CSA, GS, ROHS, UL, Other, CCC, CE, CSA, GS, ROHS, UL, TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Electronic Associates (Taiwan) Ltd is a professional fan manufacturer in Taiwan and we have been selling fans worldwide since 1990, we are dedicated to fan design, development and manufacturing. Other than fans, we do have a variety of products, such as CNC services, metal parts, PCBs, and etc.
Most importantly, we put lots of efforts in our quality control; therefore, we definitely have the experience and the marketing channels to offer our customers the products they need with a much better quality and price. Also, our products are approved by various international safety organizations and we are an ISO certificate company. With our advanced equipment and excellent engineers, we are able to offer the best solutions to our customers.
Moreover, we value our relationships with every customer and always wish to develop long-term partnership with them. We promise you that, we will do everything to make sure that you, as our cherished customer, always get what you want on time.
Our Strength:
1. High Quality products
2. Wide products selection
3. On-time delivery
4. OEM /ODM service
5. Measuring and testing equipment
6. Competitive price
7. Keep investing and developing new products
8. Value customers’ relationships
GENERAL DATA:
| Frame / Housing | Aluminum die cast, natural treatment |
| Impeller | Impeller & flange glassfiber reinforced PA66 |
Bearing System | Maintenance-free two ball bearings |
| Motor | Outer rotor, capacitor indusction. |
| Connection | Wire leads |
| Burnout / IP Protection | Thermal protector, auto cutoff & reset / 56, 55 or 44 optional |
| Rotation | - |
| Storage Temperature | -35C~+100C |
| Operating Temp. | -20C~+75C |
| Life Expentacy | 90K hours at 35C, 35K hours at 65C L10 |
| Dielectric Strength | Over 1 min. at 1,500 VAC, 0.5mA, 50/60Hz |
