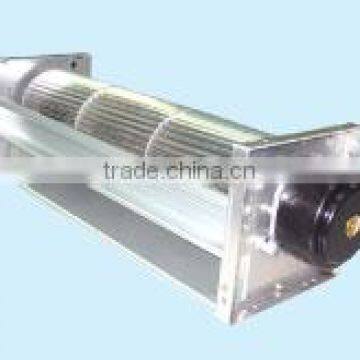

Taiwan TUV CE UL ROHS Certified DC Cross Flow Cooling Fan With DC Brushless Fan Motor in 90xL.350x453x137mm
- Keelung Taiwan
- T/T L/C D/P D/A
You May Like
-
Taiwan TUV CE UL ROHS Certified DC Cross Flow Cooling Fan With DC Brushless Fan Motor in 90xL.310x413x137mm
-
Taiwan TUV CE UL ROHS Certified DC Cross Flow Cooling Fan With DC Brushless Fan Motor in 80xL.700x815x110mm
-
Taiwan TUV CE UL ROHS Certified DC Cross Flow Cooling Fan With DC Brushless Fan Motor in 60xL.420x499x90mm
-
Taiwan TUV CE UL ROHS Certified DC Cross Flow Cooling Fan With DC Brushless Fan Motor in 50xL.290x360x70mm
-
Taiwan TUV CE UL ROHS Certified DC Cross Flow Cooling Fan With DC Brushless Fan Motor in 50xL.190x260x70mm
-
Taiwan TUV CE UL ROHS Certified DC Cross Flow Cooling Fan With DC Brushless Fan Motor in 40xL.190x260x60mm
Product Details
| Electric Current Type | DC | Blade Material | Other, Aluminum alloy | |
| Mounting | Other | Place of Origin | Taiwan, China | |
| Brand Name | EA | Model Number | EADCMCD935AN | |
| Power | 12/26/56 W | Voltage | 12/24/48 V | |
| Air Volume | 180-350 CFM | Speed | 1100/1600/2000 RPM | |
| Certification | CE, CSA, ROHS, UL, Other, CE, CSA, ROHS, UL, TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Electronic Associates (Taiwan) Ltd is a professional fan manufacturer in Taiwan and we have been selling fans worldwide since 1990, we are dedicated to fan design, development and manufacturing. Other than fans, we do have a variety of products, such as CNC services, metal parts, PCBs, and etc.
Most importantly, we put lots of efforts in our quality control; therefore, we definitely have the experience and the marketing channels to offer our customers the products they need with a much better quality and price. Also, our products are approved by various international safety organizations and we are an ISO certificate company. With our advanced equipment and excellent engineers, we are able to offer the best solutions to our customers.
Moreover, we value our relationships with every customer and always wish to develop long-term partnership with them. We promise you that, we will do everything to make sure that you, as our cherished customer, always get what you want on time.
Our Strength:
1. High Quality products
2. Wide products selection
3. On-time delivery
4. OEM /ODM service
5. Measuring and testing equipment
6. Competitive price
7. Keep investing and developing new products
8. Value customers’ relationships
GENERAL DATA:
| Frame / Housing | Aluminum extrusion housing & frame with natural color treatment |
| Impeller | Aluminum alloy fan blades with natural treatment cosmetics |
Bearing System | Two high precision permanently lubricated ball bearings |
| Motor | Microprocessor brushless DC Motor |
| Connection | Wire leads, or terminal block connecting for choice |
| Burnout / IP Protection | Electronically protected, polarity & locked rotor protection |
| Rotation | Motor at right side (R-CCW), left (L-CW) viewed from air outlet |
| Storage Temperature | -30C~+85C (65%RH) |
| Operating Temp. | Acceptable -20C~+65C |
| Life Expentacy | 55K hours at 45C, 30K hours at 60C |
| Dielectric Strength | Over 1 min. 500vac,maximum leakage 500 micro A |
