Household 32A 220V 36mm Din Rail Mounting Over Voltage Protective Relay
- Ningbo
- T/T Credit Card
You May Like
-
40A 230V Din Rail Auto-recover Over Voltage And Under Voltage Household Protective Delay Relay VPD-60
-
XJ3-D Phase Failure And Phase Sequence Over Voltage Under Voltage Protective Relay(EN-11MT)
-
A3M 63A-220V Household Appliances Din Rail LCD Display Automatic Recovery Over Voltage And Under Voltage Protection Device
-
2015 New Single Phase Digital Type Household Automatic Over And Under Voltage Protection Device HDP-63
-
Floatless Level Switch Controller Relay/Water Level Controller(61F-GP-N8)
-
Floatless Level Switch Relay(61F-GP-N, AFR-1, PM61F-GR,AFS-GR,AFS-1)
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Elsine | |
| Model Number | HDP-60 VPD-60 | Theory | Voltage Relay | |
| Usage | General Purpose | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | Low Power |
Product Description
Full-automatic over and under voltage delay protector device
HDP-60(VPD-60) series digital type full-automatic over and under voltage delay protection device is a new generation of household electrical appliances protector developed by our company according to the city power situation.
Which can work normally under unstable abnormal voltage.
When the supply power voltage exceeds the action voltage of protector,the protector would cut off the power quickly so as to protect the electrical equipments.
When the supply power voltage returns to normal value,the protector would connect the power automatically after delay time.
All these functions are automatically activated without manual operation.
Operation status:

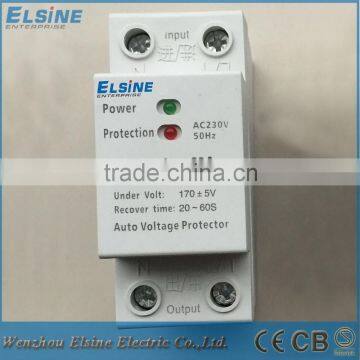

Two LED indicators on the panel indicate the working status of the protector.
When the first green indicator turn on all time means the supplied voltage is ok;
If the supplied voltage is too low(under voltage) or too high(over voltage),then the second
red indicator would turn on immediately,means the protector is in under voltage or over
voltage protection.
The product has compact structure,beautiful appearance, standard din rail mounting.
The protector complies with modular design standard, made of SMT production technology,
which keep our products more excellent and reliable performance.
1. Rated Voltage: 220V AC, 50Hz
2. Max Passing Current: 20A,32A,40A,50A, 60A(Resistance)
3. Max.Loading Power: 4.4KVA,6.6KVA,8.8KVA,11KVA,13.2KVA
4. Over-voltage Action Cut-off Value: 270±5V
5. Over-voltage Recover Value: 255±5V
6. Under-voltage Action Cut-off Value: 170±5V
7. Under-voltage Recover Value: 185±5V
8. Recover Delay Time: 20S-2 Minutes(Choose)
9. Action Delay Time: ≤1 Seconds
10.Self Power Consumption: ≤2W
11.Mechanical life: ≥ 1×105Times
12.Dimension: 85x36x66mm(L×W×H)
13.Installation: 35mm Din rail mounting
Testing:
