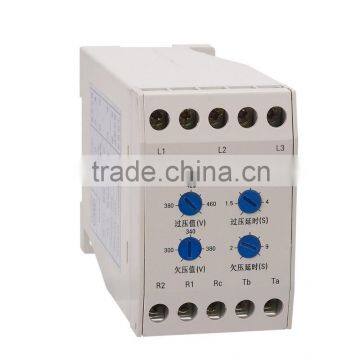

XJ3-D Phase-failure and Phase-sequence Protective Relay/Protection Relay(XJ11, EN-11MT)

XJ3-D(XJ11, CCX-1) phase failure and phase sequence protection relay is used to provide overvoltage, undervoltage and phase failure protection in three-phase AC circuits and phase sequence protection in irreversible transmission devices and features reliable performance, wide application and convenient use.

The protector starts to function when it is connected to the power control circuit in accordance with the drawing.

When the fuse of any phase of the three-phase circuit is open or when there is a phase failure in the power supply circuit, the XJ3-D operates immediately to control the contact to cut off the power supply of the AC contactor coil of the main circuit so that the main contact of the AC contactor operates to provide the load with phase failure protection.

When the phase of a three-phase irreversible device with predetermined phase sequence are connected incorrectly due to maintenance or change of the power supply circuit, the protection will identify the phase sequence, stop supplying power to the power supply circuit and achieve the goal of protecting the device.

Protection function: Overvoltage, Undervoltage, Phase failure & Phase sequence error

Overvoltage protection: AC380V: 380V~460V; Delay time 1.5S~4S(Adjustable)

Undervoltage protection: AC380V: 300V~380V; Delay time 2.0S~9S(Adjustable)

Operating voltage: AC 380V 50/60Hz (Allowable fluctuating range ±10%)

Contact number: 1 Group changeover

Contact capacity: 3A(Resistance) 230VAC

Phase failure & phase sequence reacting time: Reacting time≤2S

Electrical life: 1×10⁵ Times

Mechanical life: 1×10⁶ Times

Ambient temperature/humidity: -5 ~ 40 °c

Installation: 35mm standard Din-rail mounting or Screw mounting
