Paper Slitting Machine/automatic Cutting Machines(HY-1700)
US$ 69,000 - 74,000
/ Set
1 Set(Min. Order)
- Shanghai and Ningbo
- T/T
You May Like
-
Automatic Cardboard Die Cutting Creasing Machine
-
High Speed Paper Sheet Cutter/sheet Cutting Machines(HY-1400)
-
Professinal Manufacturer of Automatic Die Cutting Machine HY-1050E
-
Automatic Die Cutting Machine HY-1680
-
Fully Automatic Die Cutter/industrial Die Cutting Machines(HY-1050E)
-
Paper Board Die Cutting Machine Prices(HY-1050E)
Product Details
| Condition | New | Type | Paper Cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | HY | Model Number | 1700 | |
| Voltage | 380V | Dimension(L*W*H) | 12m*4m*2.35m | |
| Weight | 12T | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Paper Roll Cutting Machine(HY-1700):Control of one person,high-speed,high yield
Convenient operation
Automatic,high speed
Introduction of Paper Roll Cutting Machine(HY-1700) :

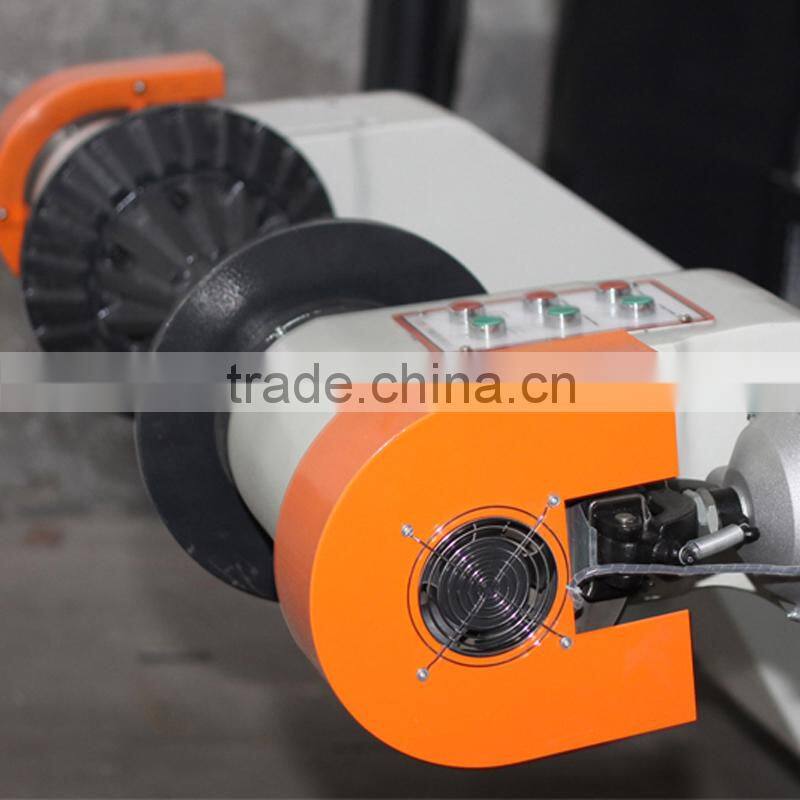

Speed reducer:
Add a cooling fan with butterfly brake, prolong the service life of brake pads. Brake block replacement is more convenient, quick, at the same time, adding the automatic brake proximity switch.
Hydraulic system:
Shaft ten independent research and develop hydraulic control oil circuit board base paper frame, equipped with famous brand magnetic valve, throttle valve, making hydraulic opening pressure is big and the noise is small, easy to operate, fast and save time.

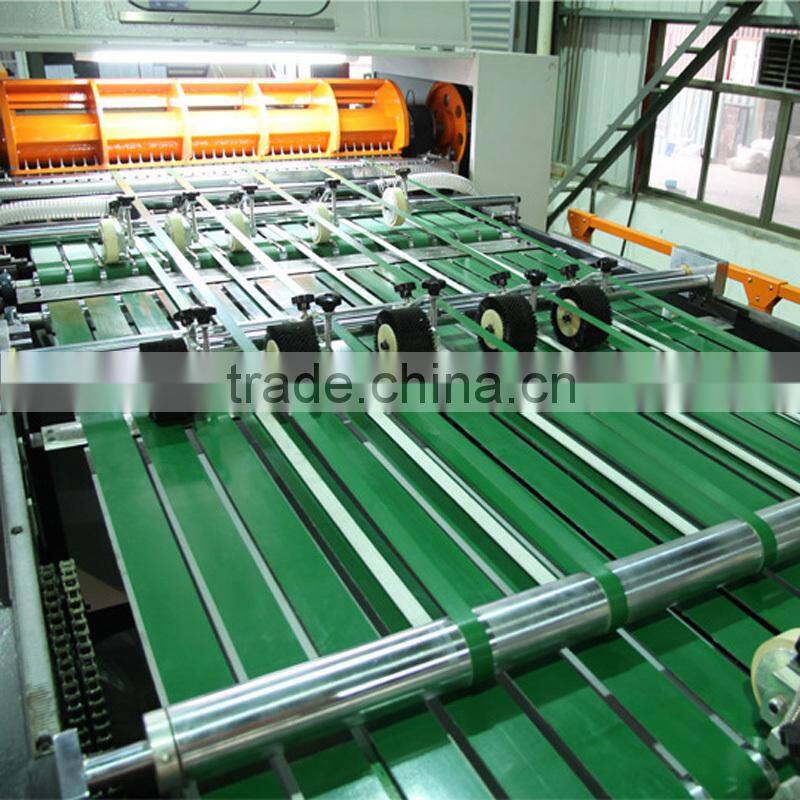

Paper neating device:
It adopts the sliding position device of the multi shafts to operate easily and reduce the noise, paper contamination by adjusting the scroll rob.
| Model | HY-1700 |
| Paper cutting mode | Upper knife rotates, knife below fixed |
| Fitting paper range | 45-550GSM |
| Max diameter of web | 2000MM |
| Max width of web | 1700MM |
| Paper cutting length | 450-1600MM |
| Paper cutting precision | ±0.3MM |
| Highest metre | 250M/MIN |
| Height of closing paper platform | 1.3M(customized) |
| Dimensions | 12M*4M*2.35M |
| Designing weight | 12t |
| Power design | AC380V/220V(50-60HZ) |
