Home > Products > Induction Furnace > Capacity 2ton, 2000kg Medium Frequency Melting Induction Copper Furnace for copper melting
Capacity 2ton, 2000kg Medium Frequency Melting Induction Copper Furnace for copper melting
- QINGDAO/SHANGHAI/TIANJIN
- T/T Credit Card
You May Like
-
Capacity 1.5ton, 1500kg Medium Frequency Melting Induction Copper Furnace for copper melting
-
Capacity 1ton, 1000kg Small Medium Frequency Melting Induction Copper Furnace for copper melting
-
Capacity 0.5ton, 500kg Small Medium Frequency Melting Induction Copper Furnace for copper melting
-
Capacity 0.3ton, 300kg Mini Medium Frequency Melting Induction Copper Furnace for copper melting
-
Capacity 0.15ton, 150kg Mini Medium Frequency Melting Induction Copper Furnace for copper melting
-
Capacity 0.15ton, 150kg Copper Melting Induction Furnace
Product Details
| Condition | New | Type | Induction Furnace | |
| Usage | Melting Furnace | Place of Origin | Henan, China | |
| Brand Name | Sutong | Model Number | GWT-2 | |
| Voltage | 660V | Power(W) | 1000kw | |
| Dimension(L*W*H) | According to the furnace capacity | Weight | According to the furnace capacity | |
| Certification | CE | Warranty | 1 year for free | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Capacity 2ton, 2000kg Medium Frequency Melting Induction Copper Furnace for copper melting
Technical parameters of copper melting furnace:
Items | Unit | GWT- 0.15 | GWT- 0.3 | GWT- 0.5 | GWT- 1 | GWT- 1.5 | GWT- 2.0 | GWT- 3.0 | GWT- 5.0 | GWT-7.5 | GWT- 10 |
Rated capacity | T | 0.15 | 0.3 | 0.5 | 1 | 1.5 | 2.0 | 3.0 | 5.0 | 7.5 | 10 |
Rated IF power | KW | 100 | 160 | 250 | 500 | 750 | 1000 | 1500 | 2500 | 3000 | 3200 |
Inputting line voltage | V | 380 | 380 | 380 | 380/660 | 660 | 660 | 660 | 950 | 950 | 950 |
furnace frequency | Hz | 2500 | 1000 | 500 | 300 | ||||||
Melting rate | T/H | 0.15 | 0.28 | 0.48 | 1 | 1.5 | 2.0 | 3.0 | 5.0 | 7.5 | 10 |
power consumption | kwh/t | 600 | 560 | 540 | 520 | 460 | 440 | 430 | 420 | 410 | 410 |
water consumption | t/h | 3 | 4 | 16 | 9 | 11 | 16 | 19 | 15 | 35 | 40 |
induction coil voltage | v | 750 | 750 | 750 | 2000 | 2000 | 2000 | 2000 | 2800 | 2800 | 2800 |
rated temperature | .C | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1650 | 1650 |
Transformer capacity | KVA | 50 | 100 | 205 | 205 | 400 | 630 | 800 | 1250 | 1600 | 2000 |
Product advantage:
1.It's mainly use: Capacity 2.0ton, 2000kg Copper Melting Induction Furnace used in melting copper
2.It can also be used together with self-heated furnaces and electric induction furnace for heating or keeping warm the molten iron and molten steel.
3.It's working principle:This is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through eletromagnetic field induction to achive heating and melting.
4.It can tilt pouring, high quality and inexpensive.
5.Energy conservation and environment protection.
- Components of the furnace

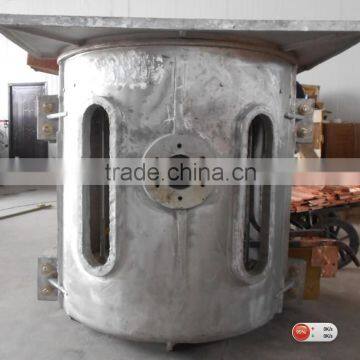

the furnace body
Contact Us
- Zhengzhou Sutong Electric Equipment Co., Ltd.
- Contact nameShanxiu Su Chat Now
- Phone86-371-86178593
- AddressNo.197, hanghai M. Road, Zhengzhou, Henan
