SZM Small Backhoe Mini tractor loader

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	szm
Model Number	wz30-25	Place of Origin	Shandong, China
Type	Backhoe Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	5,900 x 2,300 x 3,769MM	Rated Load	1000kg to 2500kg
Certification	CE	Warranty	18months or 2000hours
After-sales Service Provided	Engineers available to service machinery overseas

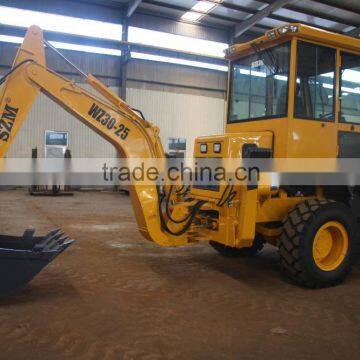

WZ30-25 Backhoe Loader

Performance and characteristic:

1.Optional:Dongfeng Cummins, Weichai, Luotuo, Huafeng engine

2. Adopted four wheel drive, hydraulic steering system, hydraulic pilot control.

3. Combination of brake system and parking brake system, more safe.

4. Humanization designs of all parts, easy to operate.

5. Optimizing design of loading working device, promote working efficiency.

6. Hydraulic pilot control is first used in digging wheel loader, easy to operate.

7. Luxurious cab based on man-machine theory, widen view and safe operation.

8. More than ten tools is optional, like hydraulic break up hammer, quiver rammer four units

as one bucket tongs etc.

Model	Specifications
Bucket capacity	1.0m³
Digger capacity	0.3(0.2-0.4)m³
Dumping clearance	3150mm
Dump Distance	930mm
Wheel base	2250mm
Tread	1580mm
Max. steering angle	±35
Max steering angle of dig working device	±85
Operating Weight	7000KG
Engine Model	YCD4R11G-68
Rated Power	50KW
Speed(F/R)I/II /III/IV	0-6.2/0-12/0-20/0-33
back speed Ⅰ/ Ⅱ	0-8/0-28.5
Max digging depth	4000mm
Max digging radium	4800mm
Tires	16/70-24
Overall Dimension	800021003140

Qingzhou Shanzhuang Machinery Co., Ltd.: Contact nameMr Wu
Chat Now; Phone86-0536-6131728; AddressHaidai Road,Yintai street, Weifang, Shandong
