Hydraulic wz30-25 Backhoe loader

Specifications

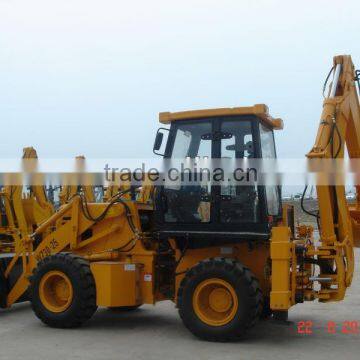

WZ30-25 Backhoe Loader

Specifications:

Overall Dimension
Length x Width x Height: 5,900 x 2,300 x 3,769MM
Cab Roof Height: 2,900MM
Wheel Base: 2,250MM
Track: 1,640MM
Min. Ground Clearance: 300MM

Main Technical Specification
Four-wheel Drive, Whole Hydraulic System
Total Operating Weight: 7,600KG
Maximum Speed: 22Km/h
Maximum Gradient Capacity: 30°

Loading Bucket Capacity: 1CBM
Rated Loading: 2,500KG
Maximum Articulated Height Of Bucket: 3,400MM
Bucket Discharge Height: 2,795MM
Bucket Discharge Distance: 1,048MM

Backacter Bucket Capacity: 0.3CBM
Backacter Discharge Height: 3,878MM
Maximum Digging Depth: 4,080MM
Minimum Turning Radius: 5,688MM
Bucket Slewing Angle: 190°
Bucket Stick Revolving Radian: 180°

Diesel Engine
Model: YTO LR4105/YTO LR4108/YTO LR4110/ 4BTA
Type: Inline,directinjection,four-stroke,liquid cooled
Rated Power: 70HP/75HP/90HP/100HP
Rated Speed: 2,400RPM

Transmission System
Type of Hydraulic Pump: Fixed shaft power shift transmission
Gear Shift: 2 forward shift 2 reverse shift
Torque: YJ-280
Drive Pump: CDXaf3016-IL
Flow: 16ML/R
Work Pump: CBGj2063
Flow: 63ML/R

Steering System
Type: Articulated hydraulic steering
Steering Control Valve: BZZ5-250
Turning Control Valve: YSF25S-00
Steering Angle: 36°
Minimum Turning Radius: 5,018MM

Axles
Main Transmission Type: Single Reduction
Wheel Reduction Type: Wheel Reduction

Wheel
Tyre Size: 16/17-20
Front Wheel Pressure: 0.22MPa
Rear Wheel Pressure: 0.20MPa
Service Braking: Air over hydraulic disc on 4 wheels
Parking Brake: Manual parking brake

Hydraulic System
System Flow: 140L/Min
Bucket Digging Capacity: 46KN
Bucket Stick Digging Capacity: 31KN
Bucket Hydraulic Translation Function: Yes
Bucket Lift Time: 6.8S
Bucket Lower Time: 2.5S
Bucket Discharge Time: 1.2S
