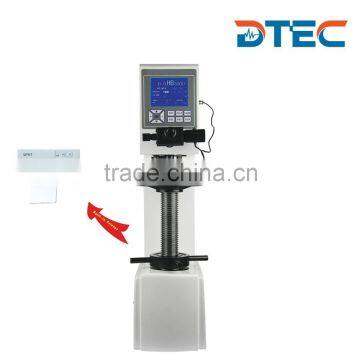

DTEC DHB-3000D Digital Brinell Hardness Tester,built-in printer full automatic testing,durable and reliable performance,EN,ASTM.

DHB-3000D Digital Brinell Hardness Tester is regarded as an advanced Brinell hardness testing equipment among national high-tech testing equipment,with novel designed.
It adopts automatically electronic loading system,PC software programming system,high magnification optional measuring system,and photoelectric sensing system.
It equips with inside printer and can freely print out testing data,all operation steps and testing values can display on large LCD digital screen.

Using Scopes:
With high level testing force and deep indentation left, Brinell Hardness Tester is suitable to test on metal with big grain size,such as cast iron,non-ferrous metals and alloys, various annealed material and QT material,especially for soft metals,like aluminum,plumbum,and stannum,it is also used for measuring hardness value of some non-metal materials such as hard plastics and bakelite, etc.

Application Areas:
Metallurgy, metrology, building materials, research institutes, hardening shops, stainless steel, automotive, railway, energy, steel, aviation, roller plants, tube rolling mills, foundries etc.

Workpieces Scopes:
Non-hardened steel, cast iron, annealed steel, normalized steel, non-metallic metals, alloys bearing ,plates, sheets, motor blocks, rails, rings, bars, tires, wheels, castings etc.

• Equips with inside printer,enable to printer out data freely;

• Higher repeatability and stability,easy operated and higher testing precision;

• Large LCD directly display all details, such as hardness values,testing force,dwell time,indentation length;

• Function of indentation calculation;

• Changeable among 14 kinds of brinell hardness scales;

• International qualified product,qualified with EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2,JJG150.

  Standard Packing Accessories:

Optional Accessories:

Brinell Hardness Block:

Brinell Indenter:

Portable Reading Microscope:

Two Models:JC-10(20X),JC-5(40X)

Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
