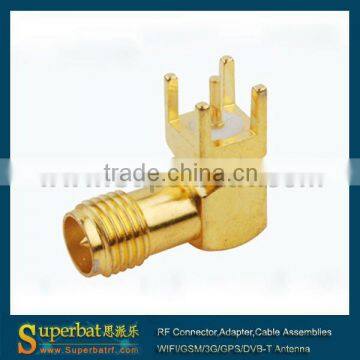

SMA pcb connetor RP female jack right angle type

Specifications

SMA pcb connetor RP female jack right angle type

Description

Product Series:       SMA

Product Type:       thru hole PCB Mount

Body Plating:       Goldplated

Connector Body Style:      Right Angle

Connector Material:       Brass

Contact Plating:       Goldplated

Gender:       Jack(male pin)

Impedance:       50 Ohm

Temp.range...................-65~ +165 (PE Cable -~ +85)
 Impedanec......................50Ω
 Frequency Range..............DC~12.4GHz(0~18GHz)
 Working Voltage..............335V max
 Withstand Voltage.......... 1000V rms
 Contact resistance
 Center Contact................≤3mΩ
 Outer Contact.................≤2mΩ
 Insulation resistance.......≥5000 mΩ
 Insertion loss ................≥0.15 dB/6GHz
 VSWR  Straight...............≤1.10+0.002f
                                     ≤1.05+0.001f
       Right angle .............≤1.20+0.003f
                                     ≤1.10+0.001f
 Durability(mating)...........≥ 500 (cycles)
