Semi-automatic Pet Stretch Blow Moulding Machine
- shanghai / ningbo
 - T/T

You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | Other, PP PE PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Other, semiautomatic | Place of Origin | Jiangsu, China | |
| Brand Name | Eceng | Model Number | YC-2L-2 | |
| Voltage | 220V | Power(W) | 20KW | |
| Dimension(L*W*H) | 1.46*0.58*1.8M | Weight | 1000KG | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | No overseas service provided |
Product Description

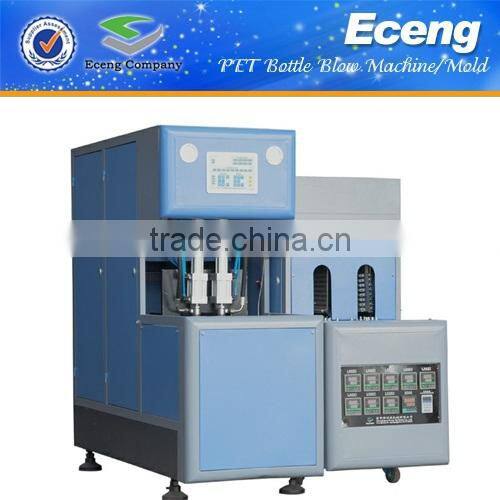

semi-automatic pet stretch blow moulding machine
 Main machine (blower + oven)  | Model type  | Tech data  |
Product Spec  | Max. product volume(L/cav)  | 2  |
Max. preform neck size(mm)  | 100  | |
Max. product diameter(mm)  | 180  | |
Max. product height (mm)  | 300  | |
Cavities  | 2  | |
Blow molding part  | Die force (KN)  | 100  |
Die stroke (mm)  | 270  | |
Max. mould size(mm)  | 390*345  | |
Mould thickness  | Adjustable  | |
Mould spacing(mm)  | 400  | |
Max. pulling stroke(mm)  | 400  | |
Operation pressure(Mpa)  | 0.8-1.0  | |
Operation air pressure consumption (1tr/min)  | 200  | |
Blow pressure(Mpa)  | 1.2-2.8  | |
Blow air pressure consumption (1tr/min)  | 300  | |
Output(pcs/h)  | 800-1000(500ml bottle)  | |
Machine size(LxWxH)(m)  | 1.46*0.58*1.8  | |
Machine weight(KG)  | 650  | |
Oven  | Temperature grade(rate)  | 8  |
Heating time(S)  | 90-200  | |
Voltage(V)  | 220 or as your request  | |
Frequency(HZ)  | 50/60  | |
Total power(KW)  | 16  | |
Oven Size (LxWxH)  | 1.35*0.55*1.15  | |
Oven weight (KG)  | 300  |
 Main machine (blower + oven)  | Model type  | Tech data  |
Product Spec  | Max. product volume(L/cav)  | 2  |
Max. preform neck size(mm)  | 100  | |
Max. product diameter(mm)  | 180  | |
Max. product height (mm)  | 300  | |
Cavities  | 2  | |
Blow molding part  | Die force (KN)  | 100  |
Die stroke (mm)  | 270  | |
Max. mould size(mm)  | 390*345  | |
Mould thickness  | Adjustable  | |
Mould spacing(mm)  | 400  | |
Max. pulling stroke(mm)  | 400  | |
Operation pressure(Mpa)  | 0.8-1.0  | |
Operation air pressure consumption (1tr/min)  | 200  | |
Blow pressure(Mpa)  | 1.2-2.8  | |
Blow air pressure consumption (1tr/min)  | 300  | |
Output(pcs/h)  | 800-1000(500ml bottle)  | |
Machine size(LxWxH)(m)  | 1.46*0.58*1.8  | |
Machine weight(KG)  | 650  | |
Oven  | Temperature grade(rate)  | 8  |
Heating time(S)  | 90-200  | |
Voltage(V)  | 220 or as your request  | |
Frequency(HZ)  | 50/60  | |
Total power(KW)  | 16  | |
Oven Size (LxWxH)  | 1.35*0.55*1.15  | |
Oven weight (KG)  | 300  |

Auxiliary device  | Required Spec  | YC-2L-2  |
High pressure air compressor  | Operation air pressure  | 3.0 Mpa  |
Air displacement  | 0.75 m3/min  | |
Power  | 9 Kw  | |
R.P.M  | 800  | |
Weight  | 460 Kg  | |
Dimension  | 1.86m*0.9m*1.4m  | |
Air filter (oil-water separator )  | Filter precision  | ≤5ppm  |
Weight  | 28Kg  | |
Dimension  | 0.24m*0.26m*0.73m  |
