Making Bottle Machine

FOB Price

US$ 18,000 - 26,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Bottle, plastic bottle
Plastic Processed	PET	Blow Moulding Type	Stretch Blow Moulding
Automatic	Yes	Place of Origin	Jiangsu, China
Brand Name	Eceng	Model Number	YCQ-2L-4
Voltage	380V/3PH/50HZ	Power(W)	43KW
Dimension(LWH)	3.5Ton	Weight	3.5Ton
Certification	CE&ISO&SGS	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

making bottle machine

Item		YCQ-2L-4
Bottle type specification	Cavity	4
	output	3200-3500
	Max. volume	2L
	Bottle mouth maximum overall diameter	28-38mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.25KW
	Maximum heating power	40KW
	All electric machine installation	43KW
	Actual consumption	21.5KW
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3000Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10℃
	Consumption	8000kcal/hr
	Frozen water flow	88L/min
Machine specification	Size of the machine	4.5x1.6x1.9
	Weight of the machine	3.5ton

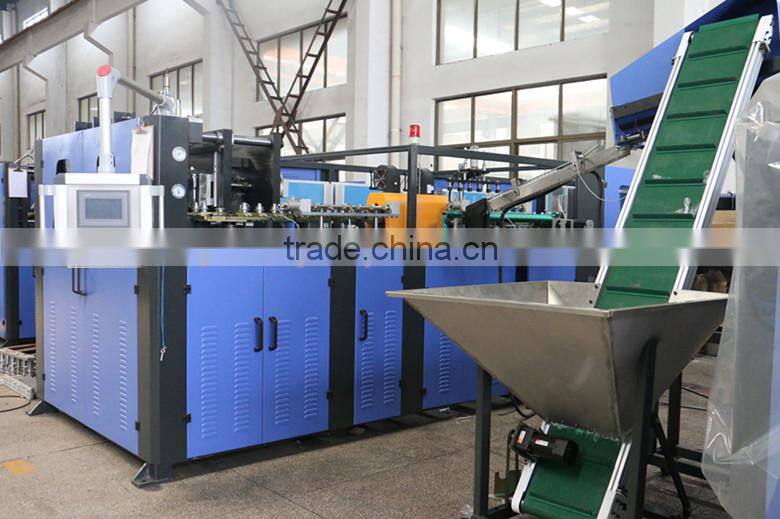

Machine

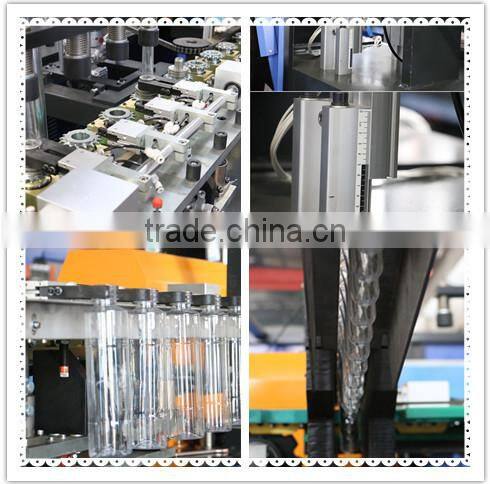

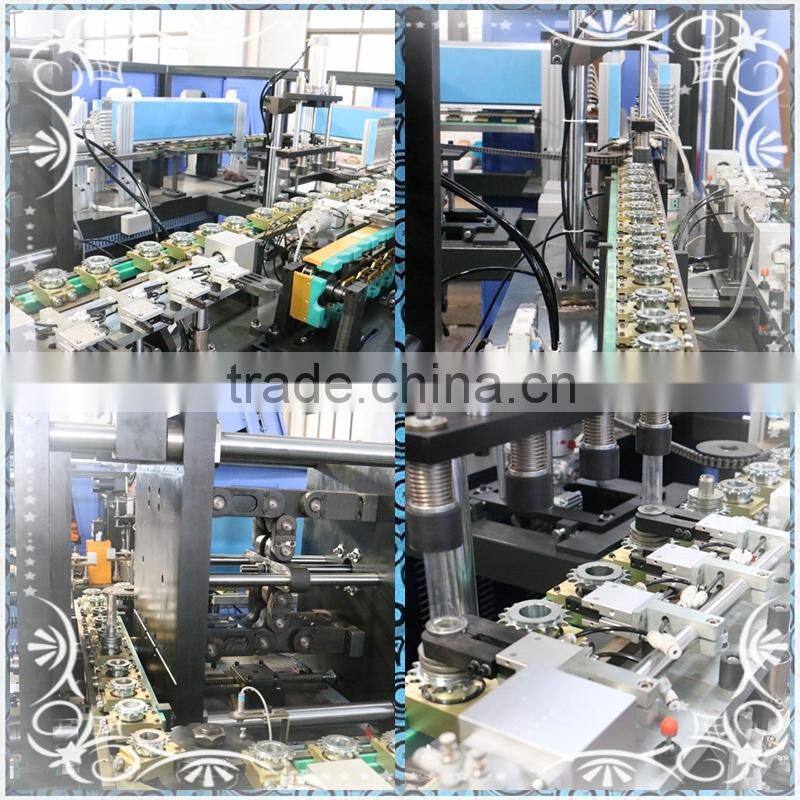

Inside picture

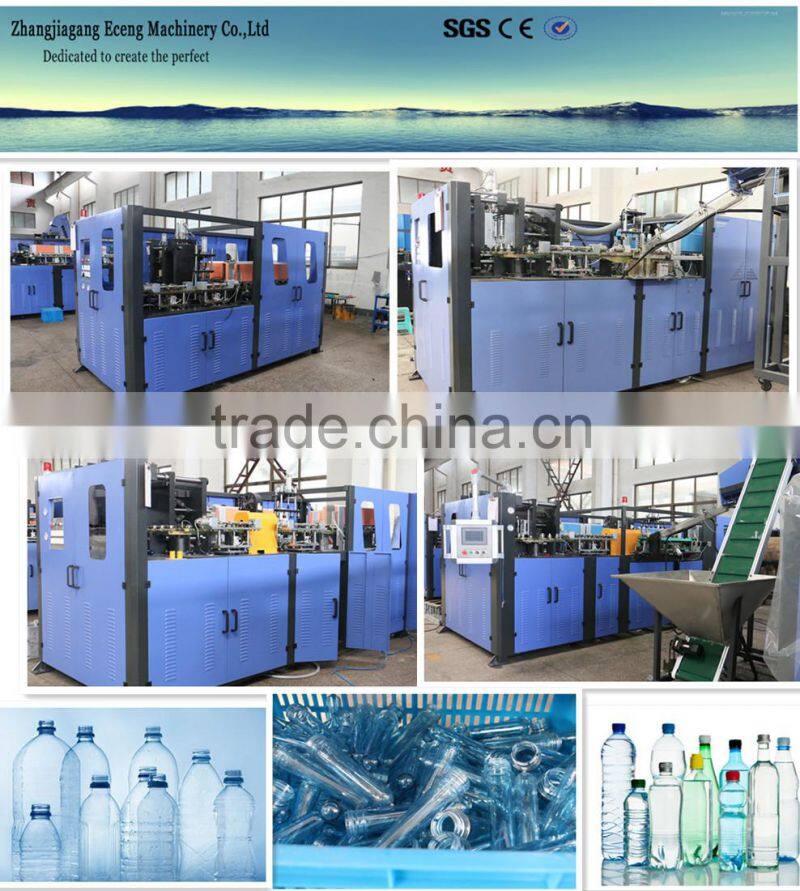

Product shows:

Our market:
