Mini GPS Active Antenna SMB Series Connector for Combined Gps Gsm Antenna

Specifications

Mini GPS Active Antenna SMB series connector # C01

     Model: GA07-300-S05SP

  Description:

Characteristic:

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0 Polarization RHCP

(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max

(iii)Mechanical
Weight <100gram
Size 38x34x11mm
Cable :RG174 3 meter / contact us for other length

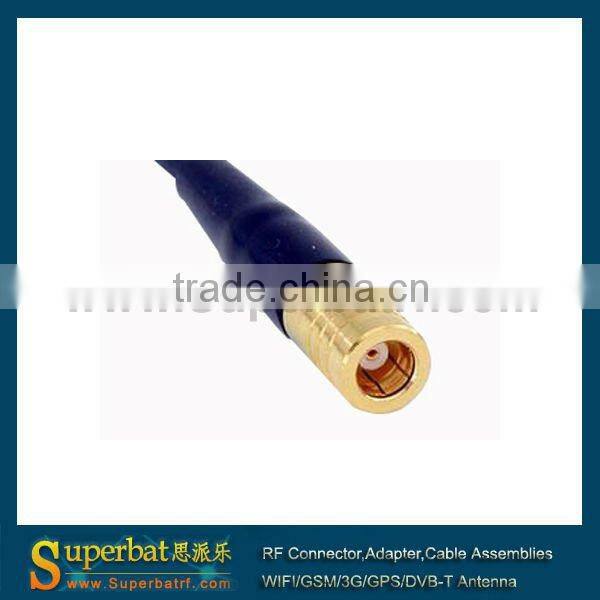

Connector :SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black


(iv)Environmental
Working Temp -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof

(V) FEATURES:

Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

(VI) APPLICATIONS:

Automobile GPS
Bluetooth Receiver
Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator

Mini-GPS antenna with SMA Plug compatibility:

Alpine: Blackbird PMD-B100 Portable Navigation System.
Falcom: Active GPS antenna FAL-ANT-3, Active GPS antenna FAL-ANT-4.
fTech: GPS Antenna SMA FGPANE1A2, GPS Antenna SMA FGPANE1A5.
GlobalSat: Antenna AT-65-SMA, G5010U, G5040, TT-300.
Holux: GM 82 Engine Board.
Navman: GPS antenna ANT06A, TeliNav Cube 2 w 850 1900 MHz, TeliNav Cube 2 w 900 1800 MHz, Tracker 5100, Tracker 5110, Tracker 5380, Tracker 5430, TRACKER 5500, Tracker 5505, Tracker 5600, Tracker 5605.
Rikaline: A-10302-SA, A-10305-SA,GPS-300 Black Box.
Standard Horizon: CP 150 (Passive 3 foot Only), CP 160 (Passive 3 foot Only), CP 170 (Passive 3 foot Only).
Synergy Systems: AR-10K GPS Antenna SMA, AR-10S GPS SMA Antenna 1001411, AR-10S GPS SMA Antenna 1001414.
Tele Type: Satellite Tracker v2.0.
Trimble: CrossCheck CDPD, CrossCheck GPRS 1900, CrossCheck GSM 900, CrossCheck GSM 900 1800, Lassen? iQ module 2000A, Lassen? SK II board, Lassen? SQ module, TNL 1000 Panelmount GPS (5.2 VDC).
u-blox: LEA-LA GPS Receiver Module, TIM-LA GPS Module, TIM-LC GPS Module, TIM-LF GPS Module, TIM-LH SuperSense GPS Module, TIM-LL GPS Module, TIM-LP GPS Module, TIM-LR GPS Module.
