Home > Products > Granulator > Strong Pressure Briquetting Machine, Briquette Making Machine, Briquette Press Machine
Strong Pressure Briquetting Machine, Briquette Making Machine, Briquette Press Machine
USD $20,000 - $600,000
/ Set
1 Set(Min.Order)
- 25 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
Specialized Compound Fertilizer Pellet Machine/ High Effiency Disk Pellet Machine
-
High Quality Wood Pellet Machine with New Design
-
Hot Sale Double-Roller Comminutor of Energy Saving
-
New Designed Potato Dregs Rotary Drying Machine/Murphy Dregs Drying Machine Made in China
-
Chinese Wood /Sawdust Ring Die Pellet Mill
-
High Effiency Disk Pellet Machine/Disk Pellet Machine for Sale
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Taida | Model Number | ACCORDING TO THE OUTPUT | |
| Voltage | customer's local voltage | Power(W) | ACCORDING TO THE OUTPUT | |
| Weight | ACCORDING TO THE OUTPUT | Dimension(L*W*H) | ACCORDING TO THE OUTPUT | |
| Certification | ISO:9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

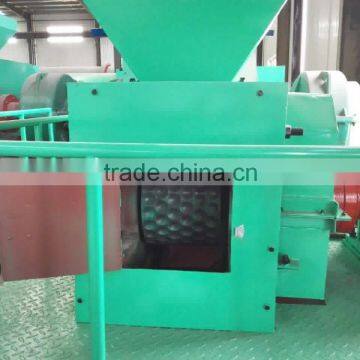

Strong Pressure Briquetting Machine, Briquette Making Machine, Briquette Press Machine
The Briquette Machines Introduction:
Briquette machines apply pressures to particles by squeezing them between two rolls rotating in opposite directions. Cavities or indentations cut into the surfaces of the rolls form the briquettes.
The Briquette machines Application
Briquette machines apply to press coal powder,coke powder,ore powder, the final products is pellet(20-60mm),which is used in civilian use or Industrial use( bolier,coal gas furnace,smelt metal,etc).
Briquette machines specification:
| Model | TDY-360 | TDY-400 | TDY-500 | TDY-650 | TDY-750 | TDY-850 | TDY-1250 | Remark | ||
| Capacity | hour | 4T/h | 8T/h | 11T/h | 18T/h | 25T/h | 35T/h | 70T/h | ||
| Annual | 10000T | 20000T | 30000T | 50000T | 70000T | 100000T | 200000T | |||
| Roller width | 250mm | 280mm | 300mm | 336mm | 400mm | 500mm | 650mm | (65Mn) | ||
| Roller diameter | 360mm | 400mm | 500mm | 650mm | 750mm | 850mm | 1250mm | |||
| Motor Power | 7.5kw | 11-15kw | 18.5-22kw | 20-30kw | 45kw | 75kw | 130kw | According to the material | ||
| Main shaft speed(rpm) | 18 | 15 | 13 | 13 | 13 | 10 | 10 | |||
| Reducer | ZQ350 | ZQ400 | ZQ500 | ZQ650 | ZQ750 | ZQ850 | ZQ1250 | Standard type | ||
| ZQ400 | ZQ500 | ZQ650 | ZQ750 | strengthen type | ||||||
| Pressure form | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | select any type | ||
| Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | ||||
| Hydraulic and constant pressure interconvert | Hydraulic and constant pressure interconvert | Hydraulic and constant pressure interconvert | Hydraulic and constant pressure interconvert | Hydraulic and constant pressure interconvert | ||||||
| Roller Material | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | casting | select any type | |
| Alloy steel | Alloy steel | 9cr2Mn | 9cr2Mn | 9cr2Mn | 9cr2Mn | 9cr2Mn | forging, | |||
| Alloy steel | Alloy steel | Alloy steel | Alloy steel | Alloy steel | pressure casting | |||||
| Structure form | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | select any type | ||
| four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | ||||
| Shape | custom | custom | custom | custom | custom | custom | custom | Usually | ||
| size | 30-60mm | |||||||||
