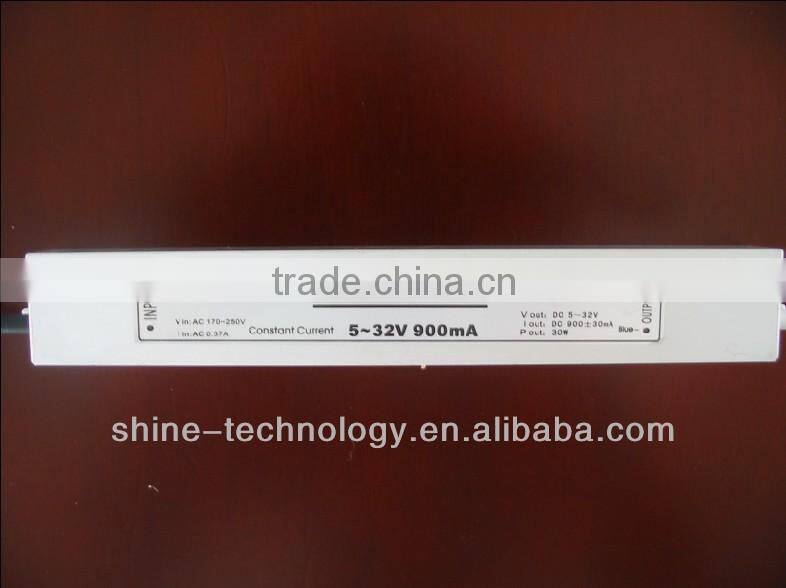

30w Led Driver Constant Current(350ma,700ma,900ma) With Ce,Rohs,Saa,C-tick Approvals
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
30w Led Driver Constant Current(350ma,700ma,900ma) With Ce,Rohs,Saa,C-tick Approvals
-
350ma Led Driver Constant Current With Ce,Rohs,Saa,C-tick Approvals
-
350ma Led Driver Constant Current With Ce,Rohs,Saa,C-tick Approvals
-
30w Led Driver Constant Current(350ma,700ma,900ma) With Ce,Rohs,Saa,C-tick Approvals
-
Constant Current 30W 700ma Power Supply LED Transformator
-
30W 350ma Coffee Color Constant Current Led Transformers
Product Details
| Place of Origin | Guangdong, China | Brand Name | SHINE-TECHNOLOGY | |
| Model Number | CC-32900C | Output Power | Other, 1 - 50W, 30W | |
| Output Type | Single | Input Voltage | Other, 220V, 170-250VAC | |
| Output Voltage | 5 ~ 32VDC | Output Frequency | 47 ~ 63 Hz | |
| Output Current | 900mA |
Product Description
Specifications
1.Aluminum Shell2.100% full load burn-in test
3.Life time: 50,000 hours
4.Certificate: CE, RoHs
30w constant current power supply
Product Information Model: CC-32900C
Features: | ||
Protections: Short circuit/Overload/Over Voltage/Over Temperature | ||
IP protection standard: IP67 | ||
100% full load burn-in test | ||
Certificate: CE, ROHS | ||
One and half years warranty | ||
Cooling: By Convection | ||
MTBF: Min250Khrs | ||
Efficiency: more than 80% | ||
Specifications: | ||
Input Voltage | 170-250VAC | |
Input current | 0.19A | |
Input Frequency | 47 to 63 Hz | |
Output Voltage | 5-32VDC | |
Output current(Constant) | 900mA | |
Max output Power | 30W | |
Storage temperature: | -40-80 degree | |
Operating temperature: | -25-45 degree | |
Humidity operating: | 20%-95% | |
Humidity storage: | 10%-95% | |
Protections | Short Circuit | Auto recovery |
Over-load | 20% exceed is allowed | |
Over-voltage | ≤255V | |
Thermal Protection | ≤85 degree | |
CE | CE Safety Standard | Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
EMI conduction & radiation | Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 | |
Harmonic Current | Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 | |
Others | Dimension/Weight | 200*30*20MM/260g |
Packing/Carton Size | 50pcs/carton / 34*24*18cm | |
Cable | 0.75sq.mm. VED wire 200mm | |
Housing Material | Aluminum | |
Derating Curve Static Characteristics
Packing
Factory
Certificates
Other Series
Trade Terms
1. T/T West Union, 30% deposit after order confirmed, the balance before shipment.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.
4. Shipping port: Shenzhen, China. 5. Discounts: We offer discount for big quantity.
Delivery Details
We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which takes about one month to arrive, depending on your actual requirements
