Home > Products > LED power supply-constant current > 350ma 80350C Constant Current Driver
350ma 80350C Constant Current Driver
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
350ma 32350A Constant Current Driver
-
High Quality Mini Small 12v 10w 0.83a Led Switch Driver Power Supply, Waterproof Led Transformer 12vdc 10watt
-
CV-12030C High Quality ac dc Ip67 Waterproof 30w 12v Aluminum Outdoor Led Driver Transformer
-
High Quality CE RoHS ac dc Waterproof Ip67 150w 12v Waterproof High Power Led Power Supply
-
High Quality ac 220v 230c 240v dc 24v 6.25a 100w Led Switching Power Supply Transformer Waterproof Ip67
-
High Quality ac 220v 230v 240v dc 24v 8.3a 200w Waterproof Ip67 Led Power Supply Transformer Adapter
Product Details
| Place of Origin | Guangdong, China | Brand Name | SHINE-TECHNOLOGY | |
| Model Number | CC-80350C | Output Power | Other, 1 - 50W, 30W | |
| Output Type | Single | Input Voltage | Other, 220V, 170-250VAC | |
| Output Voltage | 5 ~ 42VDC | Output Frequency | 47 ~ 63 Hz | |
| Output Current | 350mA |
Product Description
Specifications
1.Aluminum Shell2.100% full load burn-in test
3.Life time: 50,000 hours
4.Certificate: CE, RoHs

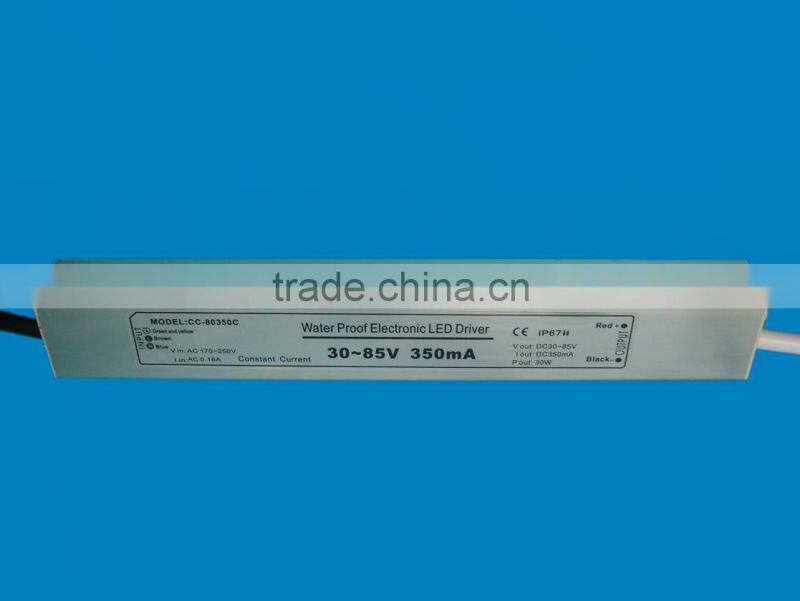

350ma 80350C Constant current driver
Product Information Model: CC-80350C
Features: | ||
Protections: Short circuit/Overload/Over Voltage/Over Temperature | ||
IP protection standard: IP67 | ||
100% full load burn-in test | ||
Certificate: CE, ROHS | ||
One and half years warranty | ||
Cooling: By Convection | ||
MTBF: Min250Khrs | ||
Efficiency: more than 80% | ||
Specifications: | ||
Input Voltage | 170-250VAC | |
Input current | 0.16A | |
Input Frequency | 47 to 63 Hz | |
Output Voltage | 30-85VDC | |
Output current(Constant) | 350mA | |
Max output Power | 30W | |
Storage temperature: | -40-80 degree | |
Operating temperature: | -25-45 degree | |
Humidity operating: | 20%-95% | |
Humidity storage: | 10%-95% | |
Protections | Short Circuit | Auto recovery |
Over-load | 20% exceed is allowed | |
Over-voltage | ≤255V | |
Thermal Protection | ≤85 degree | |
CE | CE Safety Standard | Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
EMI conduction & radiation | Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 | |
Harmonic Current | Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 | |
Others | Dimension/Weight | 200*30*20MM/260g |
Packing/Carton Size | 50pcs/carton / 34*24*18cm | |
Cable | 0.75sq.mm. VED wire 200mm | |
Housing Material | Aluminum | |
Derating Curve Static Characteristics
Packing

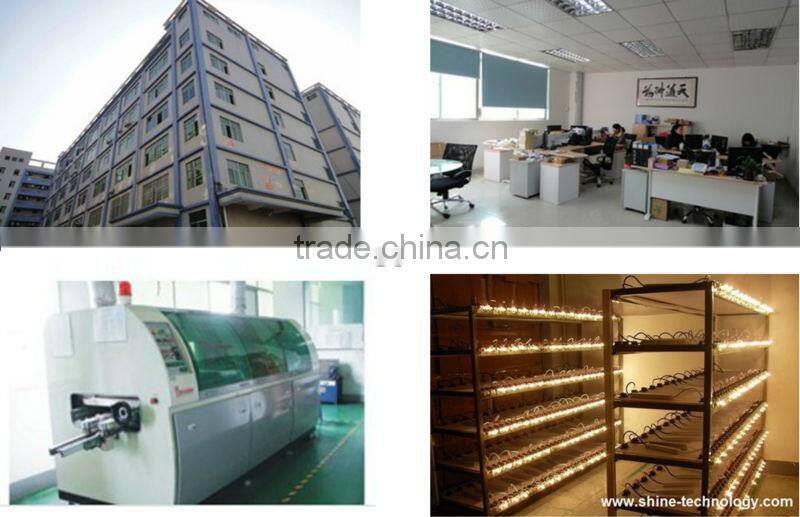

Factory
Certificates

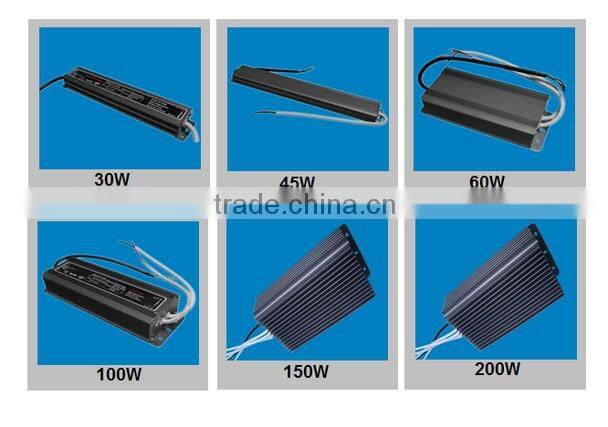

Other Series
Trade Terms
1. T/T West Union, 30% deposit after order confirmed, the balance before shipment.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.
4. Shipping port: Shenzhen, China. 5. Discounts: We offer discount for big quantity.
Delivery Details
We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which takes about one month to arrive, depending on your actual requirements
