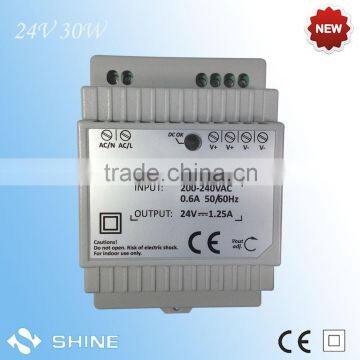

24v 30w DIN Rail ac dc power supply 220v to 24v SN-30-24 with ce approved
- SHENZHEN
- T/T Credit Card PayPal
You May Like
-
Din rail 2 years warranty 24v 100w DIN rail transformer with ce
-
High quality 60W 12V DIN RAIL Switching Power Supply 12 Volt Transformer
-
12v 60w din rail power supply with ce&rohs from shenzhen factory
-
24v din rail switching power supply 60W with ce&rohs from shenzhen factory
-
24v 60w 2.5a din rail transformer, din rail power supplies
-
60W 12vdc 12v 5a power supply, 12V Din rail switching power supply with ce&rohs
Product Details
| Place of Origin | Guangdong, China | Brand Name | SHINE | |
| Model Number | SN-30-24 | Output Power | Other, 30w | |
| Output Type | Single | Input Voltage | Other, 170-265V | |
| Output Voltage | DC 24V | Output Frequency | NONE | |
| Output Current | 1.5A |
Product Description
Welcome to Shine Technology
♦ Isolation Class II
♦ Protection: Short circuit,Overload,Over voltage
♦ Cooling by free air convection
♦ Can be installed on DIN rail TS-35/7.5 or 15
♦ LED indicator for power on
♦ 100% full load burn-in test
♦ 2 years warranty
Product Specification
Model | SN-30-12 | SN-30-24 | |
Output | DC Voltage | 12V | 24V |
Rated Current | 2.5A | 1.5A | |
Current Range | 0~2.5A | 0~1.5A | |
Rated Power | 30W | 30W | |
Ripple&Noise | 120 mVp-p | 150 mVp-p | |
Voltage Adj.Range | 10.8-13.6V | 21.6-29.0V | |
Hold Up Time | 100ms/230VAC | ||
Set up,Rise time | 500ms, 20ms / 230VAC | ||
Input | Voltage Range | 170-265 VAC 47~63Hz | |
Efficiency | 85% | 85% | |
Ac Current | 0.27A/230VAC | ||
Inrush Current | Cold Start <20A at 230VAC | ||
Protection | Over Current | 110~160% rated output power | |
Protection Type | Constant current limiting, recovers automatically after fault condition is removed | ||
Over Voltage | Hiccup mode, recovers automatically after fault condition is removed | ||
Environment | WorkingTemp&Humidity | -20-60°C 20-90% RH | |
StorageTemp&Humidity | -40-80°C 10-90%RH | ||
Safety&EMC | Safety Standards | Design Refer to: EN60950 | |
Withstand Voltage | I/P-O/P:3KVAC | ||
Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC | ||
EMC Emission | Compliance to EN55022 , EN61000-3-2 , | ||
EMC Immunity | Compliance to EN55024, EN61000-3-3, | ||
Others | Dimension | 63*97*56mm (W*H*D) | |
Packing | 0.21kg/pcs 50pcs/11kg/ctn | ||
• Mechanical Specification
• Dimension
Packaging & Shipping
Note: We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which takes about one month to arrive, depending on your actual requirements.
