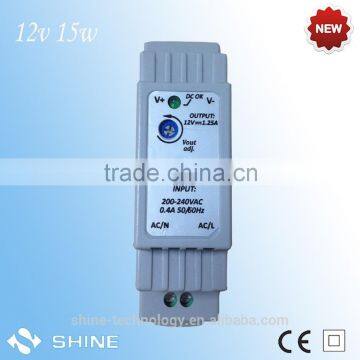

12v 15W 1.25a single output constant voltage DIN Rail power switching power supply 220v 12v

FOB Price

US$ 2.99 - 4.99 / Piece

1 Piece(Min. Order)

Port SHENZHEN
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SHINE
Model Number	SN-15-12	Output Power	Other, 15w
Output Type	Single	Input Voltage	Other, 170-265V
Output Voltage	DC12V	Output Frequency	NONE
Output Current	1.25A

Product Description

Welcome to Shine Technology

About us

Established in 2003, Shine Technology Limited is a professional manufacturer for waterproof led power supplies, led panel lights and led bulbs. Based on long-term experience in LED field, we have become one of most famous and leading exporter of LED products in China. Further more, due to our committed workforce and strict quality control processes, our products boast both high quality and superior design technology.

Our company’s growing very fast year by year, we now have 6 production lines, with more than 150 workers.

All our products comply with CE and RoHS, selling very well in Europe, North America, Austria, Japan and other Asia countries. Adhering to the ideals of "Sincerity, Mutual Benefit, Constant Innovation and Top Quality", we proudly invite all interested companies to contact us for further information about our company or products. We look forward to forming a strategic partnership with your company in the near future.

Product Description

Main Features

♦ Isolation Class II
♦ Protection: Short circuit,Overload,Over voltage
♦ Cooling by free air convection
♦ Can be installed on DIN rail TS-35/7.5 or 15
♦ LED indicator for power on
♦ 100% full load burn-in test

♦ 2 years warranty

Product Specification

Model		SN-15-12	SN-15-24
Output	DC Voltage	12V	24V
	Rated Current	1.25A	0.63A
	Current Range	0~1.25A	0~0.63A
	Rated Power	15W	15W
	Ripple&Noise	120 mVp-p	150 mVp-p
	Voltage Adj.Range	10.8-13.6V	21.6-29.0V
	Hold Up Time	70ms/230VAC
	Set up,Rise time	500ms, 20ms / 230VAC
Input	Voltage Range	170-265 VAC 47~63Hz
	Efficiency	81%	83%
	Ac Current	0.17A/230VAC
	Inrush Current	Cold Start <20A at 230VAC
Protection	Over Current	110~160% rated output power
	Protection Type	Constant current limiting, recovers automatically after fault condition is removed
	Over Voltage	Hiccup mode, recovers automatically after fault condition is removed
Environment	WorkingTemp&Humidity	-20-60°C 20-90% RH
	Storage Temp&Humidity	-40-80°C 10-90%RH
Safety&EMC	Safety Standards	Design Refer to: EN60950
	Withstand Voltage	I/P-O/P:3KVAC
	Isolation Resistance	I/P-O/P:>100M Ohms / 500VDC
	EMC Emission	Compliance to EN55022 , EN61000-3-2 ,
	EMC Immunity	Compliance to EN55024, EN61000-3-3,
Others	Dimension	259556mm (WHD)
	Packing	0.097kg/pcs 100pcs/10.14kg/ctn

• Mechanical Specification

• Dimension

Packaging & Shipping

Note: We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which takes about one month to arrive, depending on your actual requirements.
