Home > Products > Polyester geotextile > 100% polyester non woven fabric
100% polyester non woven fabric
- Qingdao port China
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | LUYUAN | |
| Model Number | 200g-1000g | Geotextile Type | Non-Woven Geotextiles |
Product Description
geotextile
Non woven geotextile can be made of polypropylene (PP), or polyester (PET), Polyvinyl or synthetic fiber on needle punch machine. The mass is available from 100gsm/m² to 1500gsm/m² and the width available from 2.0m-6.5m, monolayer or multilayer (reinforcement geotextiles), long fiber or short fiber. Color: all kinds of color are available. The annual production ability is 10 million square meters.
1.Specification
100GSM~1000GSM
2.Properties
High strength,anti-aging,anti-acid and alkali,abrasion resisting,flexibility,and easy for constructjion.
3.Usage
Used in the area of highway,railway,dam,costal beach for reinforcement,filtration,separation and drainage,especially used in salt marshes and garbage burying field.
4.Size of package
Width 1-7m,length 50-100m(or as per request)
5.Technical Specification
Item | Value | |||||||||
Specification/2 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | |
1 | Breaking Strength(MD/CD)(KN/m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
2 | Elongation at break(MD/CD) (%) | 40~80 | ||||||||
3 | CBR Mullen Brust Strength KN≥ | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
4 | Tear Strength(MD/CD)/KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
5 | Openging Size o90 (o95)mm | 0.05~0.20 | ||||||||
6 | Vertical Permeability Coefficient cm/s | K×(10-¹~10-³) K=1.0~9.9 | ||||||||
7 | Thickness/mm≥ | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
8 | Width Variation% | -0.5 | ||||||||
9 | Weight Variation/% | -5 | ||||||||

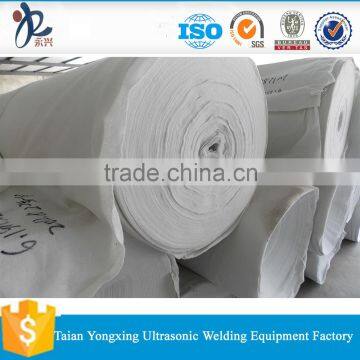

6.Related photo
