12v Mini Generator Motor Coreless Brush Dental Handpiece Micro Motor
US$ 10 - 50
/ Piece
5 Pieces(Min. Order)
- shenzhen
- Credit Card
You May Like
-
Good Price 16mm Carbon Brushes Electric Motors for Tattoo Machine Quality Choice
-
Light Weight 10v 12v Dental Micro Motor Strong 207a/107l
-
Light Weight 10v 12v Micro Dental Electric Motor
-
Good Price 16mm Geared Micro Motor Carbon Brush
-
12v Mini Generator Motor Coreless Brush Dental Micro Motor
-
Hot Selling 1w 18g Micro dc Motor High Power Electric Tattoo Machine Motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | Topband | |
| Model Number | CL1620 | Usage | Other, ticket vending machine,power tool,meat slicer | |
| Certification | CE, ROHS | Type | Micro Motor | |
| Torque | 0.3 mN.m | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Totally Enclosed | |
| Speed(RPM) | 8800 rpm | Continuous Current(A) | 0.4 A | |
| Output Power | 1w | Voltage(V) | 5 V | |
| Efficiency | Other, 80% |
Product Description
12v mini generator motor coreless brush dental handpiece micro motor
1.12v mini generator motor coreless brush dental equipment motor
2.Imported high quality bearings
3.Customized design, variable choices
4.High reliability and competitive price
5.Big factory, complete quality control system
dental handpiece micro motor picture
dental handpiece micro motor data
| CL1620 | UNIT | ’001 | ‘002 | ’003 | ‘004 |
| Nominal voltage | V/DC | 5 | 7.2 | 10 | 12 |
| No load speed | rpm | 9470 | 8800 | 12500 | 7300 |
| Rated speed | rpm | 8420 | 5200 | 10770 | 4800 |
| No load current | mA | 23 | 18 | 30 | 20 |
| Rated current | mA | 80 | 296 | 190 | 150 |
| Rated torque | mNm | 0.3 | 1.96 | 0.98 | 1.47 |
| Stall current | A | 0.6 | 0.7 | 1.0 | 0.3 |
| Stall torque | mNm | 2.7 | 4.8 | 7.1 | 4.3 |
| Max. efficiency | % | 75 | 79 | 76 | 76 |
| Terminal resistance | Ω | 7.8 | 9.9 | 10.1 | 39.5 |
| Torque constant | mNm/A | 4.2 | 6.6 | 7.2 | 14.1 |
| Speed constant | rpm/V | 1894 | 1222 | 1250 | 608 |
| Weight | g | 18 | 18 | 18 | 18 |

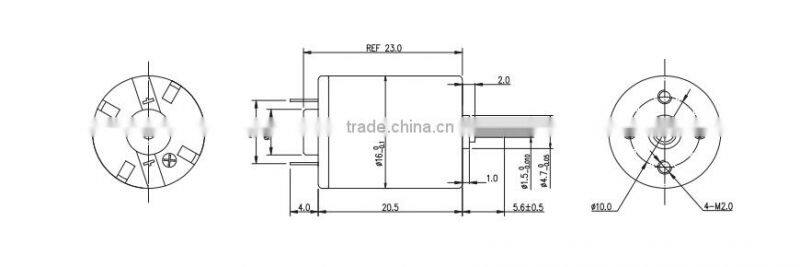

structure chart
Application Show
Company Introduction
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and
Controller in China,Which is established in 1996. Motor division is focusing on coreless
motor, general BLDC motor,brushless motor and brushless dc motor controller.
Topband was listed in Shenzhen stock change on July 2007,became the first listed
company in intellectual control in China, the stock code 002139.
