350g 24v 48v Energy-saving Motor for Industrial Sewing Machine
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TOPBAND | |
| Model Number | CL4070 | Usage | Electric Bicycle, Home Appliance, Other, Electric Bicycle, Home Appliance, electric curtain,tattoo machine,grinder,Meat slicer | |
| Certification | CE, ROHS | Type | Gear Motor | |
| Torque | 1825mNm | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Waterproof | |
| Speed(RPM) | 6670rpm | Continuous Current(A) | 5300A | |
| Output Power | 116.4W | Voltage(V) | 24V | |
| Efficiency | Other, 81% |
Product Description
350g 24v 48v brush energy-saving motor for meat slicer
1.We can offer custom-tailor service
2.Low noise.high speed
3.High efficiency: (Low current consumption and low staring voltage)
4.Reliability (Operates more quietly, longer services life and low inductance)
5.good price 40mm 24v brush dc motor
6.Our company is the first listed company in intellectual control in China

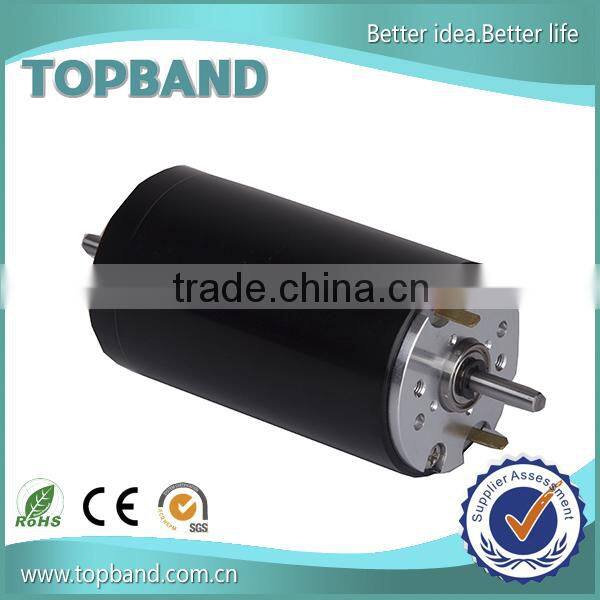

energy-saving motor picture
energy-saving motor data
| CL4070 | UNIT | ’001 | ‘002 | ’003 |
| Nominal voltage | V/DC | 24 | 48 | 48 |
| No load speed | rpm | 7340 | 9200 | 7720 |
| Rated speed | rpm | 6670 | 8720 | 6960 |
| No load current | mA | 120 | 75 | 85 |
| Rated current | mA | 5300 | 2020 | 3200 |
| Rated torque | mNm | 166.6 | 98 | 186.2 |
| Stall current | A | 37.0 | 28.2 | 26.7 |
| Stall torque | mNm | 1825.0 | 1875.0 | 1890.0 |
| Max. efficiency | % | 81 | 78 | 79 |
| Terminal resistance | Ω | 0.6 | 1.7 | 1.8 |
| Torque constant | mNm/A | 49.3 | 66.5 | 70.8 |
| Speed constant | rpm/V | 306 | 192 | 161 |
| Weight | g | 350 | 350 | 350 |

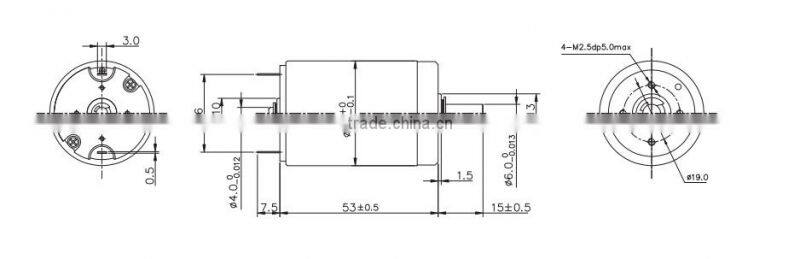

Structure Chart
Application Show
Company Introduction
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and
Controller in China,which is established in 1996. Motor division is focusing on coreless
motor, general BLDC motor , brushless motor and brushless dc motor controller.
Topband was listed in Shenzhen stock change on July 2007,became the first listed
company in intellectual control in China, the stock code 002139.
