Home > Products > BLDC motor > 3000rpm 36v Moped Motor
3000rpm 36v Moped Motor
- shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TOPBAND brushless DC BLDC motor | |
| Model Number | BL8655 | Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, Tattoo machine,pump | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, FCC | Type | Micro Motor | |
| Torque | 2.5N.m | Construction | Permanent Magnet | |
| Commutation | Brushless | Protect Feature | Waterproof | |
| Speed(RPM) | 10000 | Continuous Current(A) | 5.3A | |
| Output Power | 300W | Voltage(V) | 36 | |
| Efficiency | IE 2 |
Product Description
3000rpm 36v moped motor
36v moped motor data:
| BL8655 | UNIT | 001 |
| RATED VOLTAGE | V/DC | 36 |
| RATED SPEED | RPM | 2200 |
| NO LOAD SPEED | RPM | 3000 |
| NO LOAD CURRENT | A | 0.5 |
| RATED CURRENT | A | 5.3 |
| RATED TORQUE | mN.M | 550 |
| RATED POWER( | W | 126.7 |
| MAX EFFICIENCY | % | 84 |
| RESISTANCE PHASE TO PHASE | OHM | 2.37 |
| TORQUE CONSTANT | mN.m/A | 114 |
| SPEED CONSTANT | rpm/V | 83 |
| ROTOR INERTIA | g.cm'2 | 1100 |

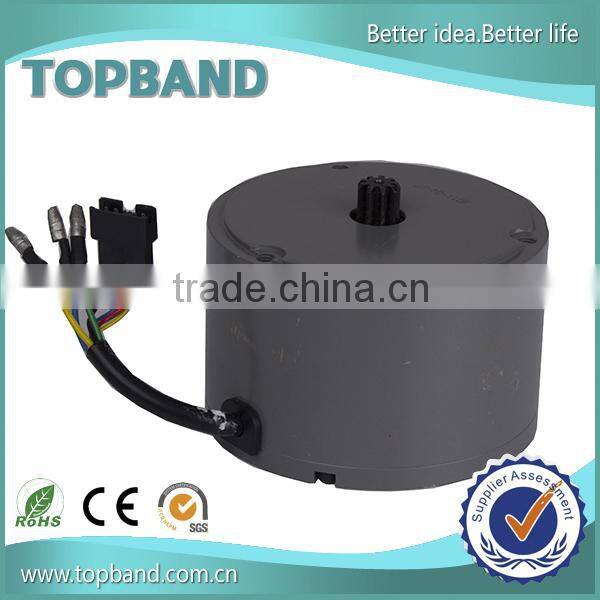

36v moped motor pictures:

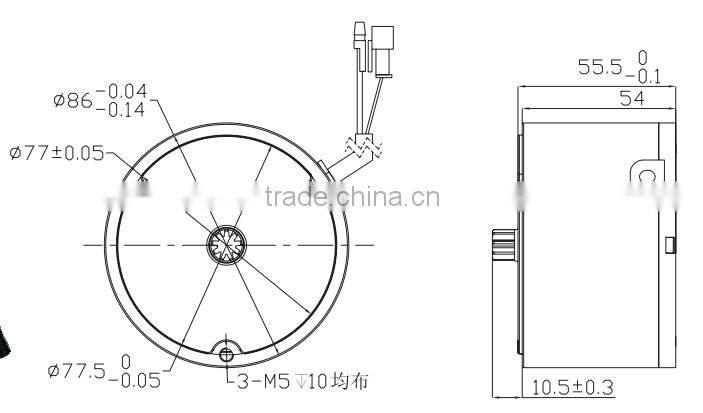

36v moped motor drawing
brushless dc motor which is used in Power tools, medical equipment,cutter machine,long life and low noise,size drawing following;
Description and Advantage
* High efficiency and high torque in a small diameter
* Sizes ranges from 16mm to 86mm diameter
* Standard components,flexible combination, which has widely applications
* outpur power is from 1.0 to 1000 watts
* Low starting voltage,low rotor intertia,low noise,long lifetime
* Custom systems available from design to production
* More competitive price compared with same level products overseas

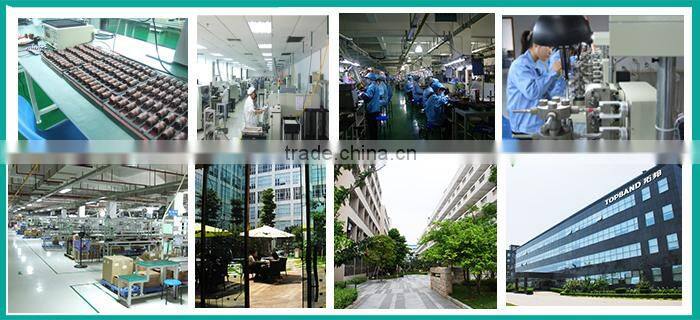

Company Introduction
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and
Controller in China,Which is established in 1996. Motor division is focusing on coreless
motor, general BLDC motor,brushless motor and brushless dc motor controller.
Topband was listed in Shenzhen stock change on July 2007,became the first listed
company in intellectual control in China, the stock code 002139.

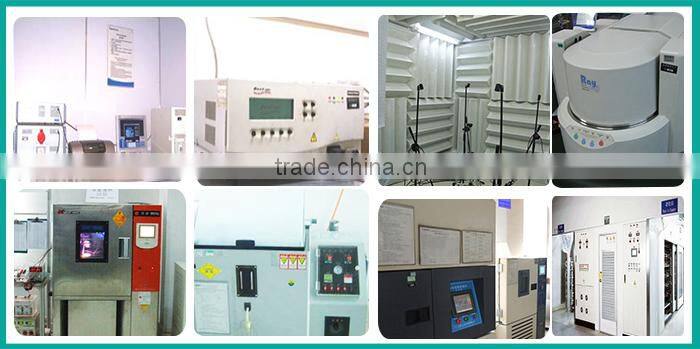

R&D Testiing Equipments
Certification Show
Packing&Shipping
Contact
Contact Us
- Shenzhen Topband Co., Ltd.
- Contact nameKelly Au Chat Now
- Phone86-755-27651888-6225
- AddressRoom 403-414, Block B, Tsinghua University Institute, Hi-Tech Industrial Park, Nanshan Dist., Shenzhen, Guangdong
