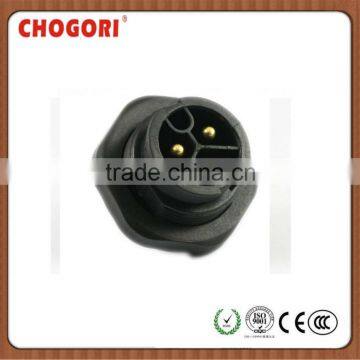

Ip68 Waterproof Connector, Chogori watertight connector
US$ 1 - 5
/ Piece
200 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
Middle 2pins lock plug waterproof connector, Chogori high quality watertight connector, Nylon waterproof connector
-
8sockets male plug, ip68 waterproof connectors
-
5pins male plug with male pins, IP68 waterproof cable connector
-
push lock panel mount , standard 2pins cable connector, ip67waterproof connector
-
standard 2pins push lock, panel mount ip67waterproof connector
-
standard 3pins lock bayonet , ip67 panel mount waterproof connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | CHOGORI | |
| Model Number | 22003515-03 | Type | Other | |
| Application | Other | Gender | Female |
Product Description
Specifications
1. Standard series2. 2p to 12p for 10A to 2A
3. Assembly and molding
4. IP67, IP68 waterproof
5. CE/UL/ISO/TUV
Standard series circular waterproof connector
1. Standard size provides universal application and good looking, used for varies industries
2. Screw, Lock bayonet and Push lock mating style
3. Assembly and molding type can be chosen upon different cable specification
4. Any cable length is available and terminal processing
5. Cable plug and panel receptacle can be chosen
6. Straight and right angled style
| Material | |
| Connector body: | Nylon+GF UL94V-0 1/16" |
| Plastic: | PA66 &UV resistance |
| Contact pin: | Brass(gold-plated 4 u" -20u") |
| Sealing | Silica gel |
| ROHS,CE Approved | |
| Property | |
| Contact Resistance | <10mΩ |
| Insulation Resistance | ≥100 MΩ at DC500V |
| Breakdown Voltage | ≥1KV/1Minute |
| Temperature Rating | "-45°C~+105°C |
| Waterproof Rating | IP67&IP68 |
| Durability(Plug and Insert) | ≥ 3K Plug/Unplug Cycles |
