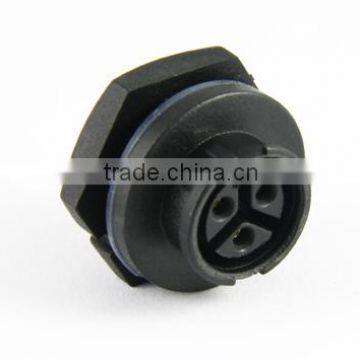

Standard 3 pin solar panel, Chogori high quality rear panel mount watertight connector

FOB Price

US$ 1 - 5 / Piece

500 Pieces(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Chogori
Model Number	22003625--03	Application	Power
Gender	Other, panel mount

Product Description

Specifications

A. The waterproof rating is IP67
B. 3 types can be choose: screw type, lock bayonet type
C. UL,CE,ROHS

The advantage of our connector

1. Push lock type can be butt joint easily and reliable

2.100% in house manufacturing ready for customized service

3. RoHS compliant with Safety approval

4. We can produce connector with contact number from 1 to 24, it's all deopends on custome's request

5. The degree of protection can be IP65,IP66,IP67,IP68

6. Field installable and molding with cable for customer's choice

7. We test our connector many times during our producing to guarantee the quality of our connector

8. We provide 50,000 sets waterproof connectors using on the Opening Ceremony at the Shanghai 2010 World Expo with its 6,000 sq.m huge LED screen , We have provided more than 25,000 sets waterproof connector for the Dream scroll of 2008 Beijing Olympic Game at the opening ceremony

Item	Description	Detail
1	Connector Size	Standard
2	Current Rating	10A
3	Rate Voltage	300V
4	Contact Number	3
5	Connector Gender	Panel mount
6	Assembly Style	Solder
7	Mating Style	Lock bayonet
8	Backs Hell	circular
9	Waterproof Rating	IP67
10	Wire Gauge	18AWG
Material: Insulator: PVC Contacts: Brass 4U”-20U” Gold plated Sealing: Silicone CE, UL, ROHS
Property: Contact Resistance: <5mΩ Insulation Resistance: ≥500MΩat DC 500V Breakdown Voltage:≥2.5KV normal, 1.5KV water Temperature Ration: -45°C-105°C Durability: 3000 cycles
Our connectors are widely used in: u LED u Street light u Automotive u Power supply u Electric vehicle u Marine electron u Actuating motor u Medical equipment u Wireless communication

The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)

The test equipment of our company
