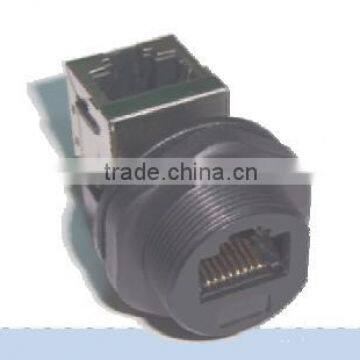

RJ45 90 degree screw type IP67 waterproof connector,Chogori high quality Nylon connector,easy installabel watertight connector
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | CHOGORI | |
| Model Number | 33000000-02 | Type | Other, Power | |
| Application | Other, Power&LED display&Electronical equipments&Communications | Gender | Other, receptacle |
Product Description
Specifications
1.VDE, CE, ROHS, CCC, UL, TUV Certification2.Waterproof IP67
3.Customized
RJ45 waterproof connector IP67 Rated
Screw type and lock bayonet type and solder type mating style
Assembly and molding type can be chosen upon different cable specification
Any cable length is available and terminal processing
Cable plug and panel receptacle can be chosen
Snap-in waterproof system with perfect appearance
Your samples and drawings are warm welcomed
Fulfilling different kinds and quantities of order to provide
Prompt delivery and excellent after service
Good quality & Competitive price & High efficiency
Material
Connector Body
| Nylon+GF UL94V-0 1/16” |
Contact
| Brass, 4u"--20u" Gold Plated |
Sealing Material
| Silica gel |
Certificate
| VDE ROHS CE CCC UL TUV |
Property
Panel Thickness
| Max: 4.0mm |
Wire Gauge
| 24AWG/0.205mm² |
Cable Range
| 4.0-7.0mm |
Degree of Protection
| IP67 |
Machanical Operation
| >3000 mating times |
Temperature Rating
| -45°C~+105°C |
Speed
| 480Mbps |
Rated Current (40°C)
| 1.5A |
Divisional Color
| Black |
Type
| Waterproof connector |
Brand Name
| Chogori |
Contact resistance
| ≤10mΩ at 2mA Max. |
Insulation resistance
| ≥10MΩ /0.01second DC 500V |
Breakdown Voltage
| 500V(AC)/0.01second |
Mating parts:
RJ45 plug : 33000000-03
Plug and mating receptacle:
Plug and receptacle with cabel:
Receptacle with cabel and cover cap:
T multifounctional RJ45 receptacle:
