Full Automatic High Speed Flat Plate Butt Welding Machine

 Application    Longitudinal Seam Butt Plate Welding Machine

    Mainly used for flat stitching longitudinal seam automatic welding, the welding process can be TIG / MIG / MAG / PAW / SAW and other methods for welding carbon steel, stainless steel, aluminum and aluminum alloys, titanium and other materials, widely used the aerospace, automotive parts, motorcycles, home appliances, pressure vessels and food machinery industry. Pneumatic compression device key structure to ensure uniformity of the work piece clamping, mandrel optional water-cooled and back seam gas protection, reduce welding deformation; control system uses PLC + touch interface humane and effective to ensure the welding quality, simple and reliable operation

 Parameters  Longitudinal Seam Butt Plate Welding Machine

    Standard configuration: Support mandrel (without water cooling), copper solder pads (pads shaped groove dimensions according to the work piece thickness, material, welding technology decision), copper key pressure means, 100mm gun pneumatic lift mechanism (carrying 20kg), 60mm stroke two-dimensional manual adjustment mechanism, common arc welding controller (can be adapted to TIG / MAG / PAW)

    Option: Water-cooled spindle support with back air protection pads, stainless steel liner, pneumatic / manual for the device, TIG wire feeder, ALC arc length tracker, pneumatic hook, electric cross skateboard, seam tracking devices, auxiliary loading and unloading car, submerged arc welding head and controller

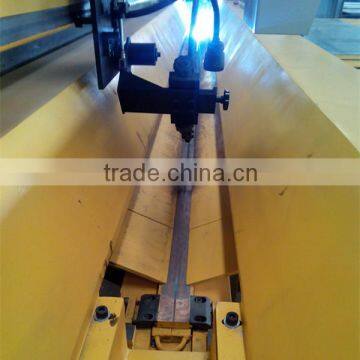

 Pictures          Longitudinal Seam Butt Plate Welding Machine

 ISO9001:2008 & CE certification

 After-sale Service

♥ Warranty one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material

 Plywood case or plastic film cover
