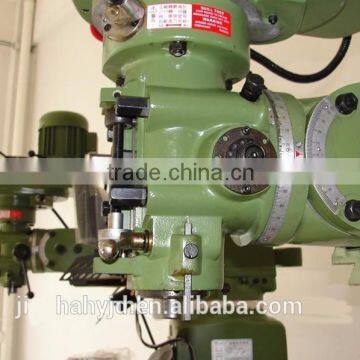

vertical turret Milling Machine for 2E/4E

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	China
Brand Name	HHT	Model Number	2E/4E
Type	Vertical	CNC or Not	CNC
Dimension(LWH)	160016002000mm,150017002150mm	Weight	1200kg.1400kg
Certification	ISO/CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

2E/4E-High quality vertical turret Milling Machine:

1.Working table: 1067*254*72, 1270*254*90mm
2.R8 taper
3.3 HP motor
4.127mm spindle traver

Specifications:

		Unit
Working table		mm	*106725472*
Travel	X longitudinal axis	mm	750
	Y transverse axis	mm	315
	Z vertical axis	mm	370
Spindle travel		mm	127
Distance between spindle nose to working table		mm	400
Spindle	speed	rpm	80-5440/16 steps, 60HZ
	Taper		R8
	Motor	HP	3 HP
Rotary angle	longitudinal		±45°
Rotary angle	transverse		±90°
Dimension		mm	1600×1600×2000
Net weight		Kg	1200

Turret Milling Machine: 4E

		Unit
Working table		mm	1270×254×90
Travel	X longitudinal axis	mm	900
	Y transverse axis	mm	385
	Z vertical axis	mm	340
Spindle travel		mm	127
Distance between spindle nose to working table		mm	400
Spindle	speed	rpm	80-5440/16 steps, 60HZ
	Taper		R8
	Motor	HP	3 HP
Rotary angle	longitudinal		±45°
Rotary angle	transverse		±90°
Dimension		mm	1500×1700×2150
Net weight		Kg	1400

Standard accessories:

Optional accessories:

Digital readout
water pump
Optical scale
R8 collet chuck
waterpond
flat cutting pliers
Power feed unit
Others
Payment Terms:
2.1. 30% Deposit by TT before production and 70% payment by TT before shipment;
2.2. 30% deposit by TT before production and 70% L/C at sight before shipment;
2.3. 100% L/C at sight.
