2E/3E/4E/4EA Hot Sale Small Turret Milling Machine

2E/3E/4E/4EA hot sale small turret milling machine

Main Introduction:

• A turret mill is a more versatile mill that is commonly known as a Bridgeport milling machine. Its spindle has more range of motion and can be set into a variety of positions. This makes the mill a little more flexible and allows it to create more products. Parts, and even plaques, can be made on these types of mills.

Function

• A mill can cut metal, wood or plastic with cutting tools such as end mills, which are specifically designed for roughing and finishing material, and drills. The head can be tilted for angled cutting and drilling and you can rotate it for betting positioning over your work piece. Mills are multi-purpose devices and crucial in any machine shop environment.

Quill and Quill Feed

• The quill contains the tool and spindle being used for the cutting process. It moves in a vertical fashion and is controlled by the quill feed. By using this handle, you can raise and lower the tool to the desired depth. There is also a lock for this quill where you can cut multiple production pieces to the same depth.

Work Table

• The work table is where the raw material is held for machining and can be moved in three directions, X, Y and Z. X is a movement from left to right, Y is front to back and Z is up and down. The table can be manipulated in many ways and moved quite far in any of the possible directions for maximum flexibility in cutting. The table also contains slots to secure vises for work-holding.

Head, Motor and Spindle

• The head is the main top area of a manual mill, the most popular mill in use today. It contains the motor as well as the spindle. The motor uses a belt-driven system to rotate the spindle and speeds can be from 50 to over 4000 RPM depending on the gear used. The spindle moves in either a clockwise or counter-clockwise position and is the part responsible for allowing the tool to cut as the tool itself is attached to the spindle.

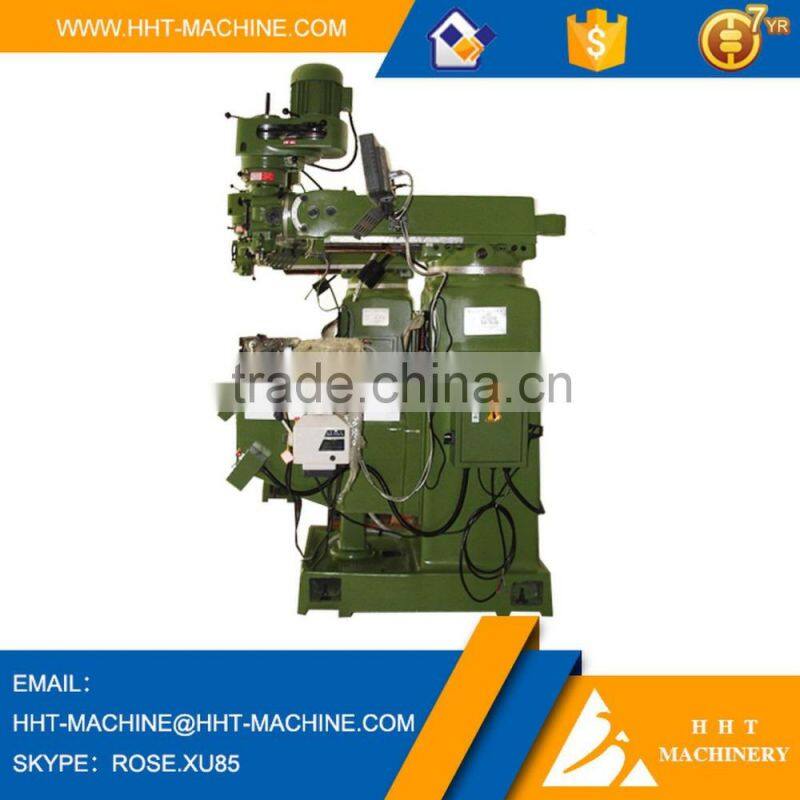

Reference Pictures:

HuaiAn HaoYang Machine CO.,Ltd is a 4s unity which consists of professional and high-quality companies,schools and research units.Our business covers the whole machine tool industy including mines, ironworks,casting,accessories machines manufacturing,assembly,sales,service and R&D design.

Our main products are: CNC lathe, CNC machine center,CNC gantry milling machine,CNC borning and milling machine,turret milling machine and so on.

The Other Matters:

1. Delivery Date:

  It will be confirmed when you make the order.

2. Payment Terms:

 2.1. 30% Deposit by TT before production and 70% payment by TT before shipment;

 2.2.30% deposit by TT before production and 70% L/C at sight before shipment;

 2.3.100% L/C at sight.

Any questions or requirements from you are welcomed. Please contact us via phones or Skype:Julie 2120. And here is our website:  http://hahyjd.en.china.cn/

We Are At An Exhibition:

Factory Pictures:

Looking for agents worldwide

With years of development, we have entered into international market and gain good reputation for our machines.

In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.

Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.

And if you have any requirements, please let us know. We will try our best to meet your requirements.

We are looking forward to establish long-term business relationship with you!
