VMC1060 5 Axis vertical cnc milling machine for metal,cheap price
- 500 Set / Sets per Month
- SHANGHAI for VMC1060 2016 New Vertical CNC milling machine
- T/T
You May Like
-
V65 High precision mini metal CNC Milling Machine models
-
2016 VMC1060 5 axis multi-purpose vertical CNC milling machine,machining center for sale
-
CNC Rotary table HT200 HT200/1 HT315 HTG300 with good quality
-
high quality for low price cnc rotary table milling machine
-
T5 T6 linear guideway cnc tapping machine
-
T5 T6 china manufacturer automatic tapping machine drilling function
Product Details
Condition | New | Place of Origin | Yunnan, China | |
Brand Name | HHT | Model Number | VMC1060 | |
Type | Vertical | CNC or Not | CNC | |
Voltage | Customer Requirement | Power(W) | 25kw | |
Dimension(L*W*H) | 3100*2600*2680mm | Weight | 7800kg | |
Certification | ISO/CE | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
VMC1060 2016 New Vertical CNC milling machine
Main features of VMC machines:
The vertical machining center is applicable to process small complex parts like plates, mold
and box types. This machine is good at milling, boring, drilling, tapping and cutting.
Specifications | X/Y/Z AXIS HARD GUIDEWAYS | |||
Item Model | Unit | VMC-1060 | ||
working tale size | mm | 600x1300 | ||
X/Y/Z travel | mm | 1000/600/600 | ||
Distance between spindle end and table | mm | 180-780 | ||
Distance between spindle center and column guide way | mm | 600 | ||
Maximum weight of working table | kg | 800 | ||
table-T-slot | mm | 5-18-120 | ||
X/Y/Z axis rapid feed | m/min | 20 | ||
three axis working rapid speed | mm/min | 8000 | ||
X.Y.Z axis screw mandrel size | mm | 4010 | ||
positioning accuracy | mm | ±0.005/300 | ||
repeat positioning accuracy | mm | ±0.003 | ||
spindle speed | rpm | 8000 | ||
spindle taper | mm | BT40/150 | ||
control system | / | MISTUBISHI M70VA/ SIEMENS 828D BASIC/ FANUC0I-MD | ||
torque force of spindle motor | nm/kw | 47.7/11 | ||
torque force of X.Y.Z motor | nm | 20-50 | ||
pneumatic source requirement | Kg/Cm2 | 6 | ||
power consumption | kva | 25 | ||
machine size | mm | 3100*2600*2680 | ||
machine weight | kg | 7800 |

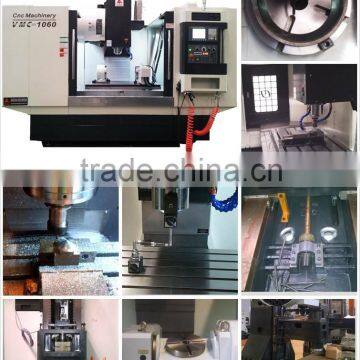

Photos of VMC1060:
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
a. 30% Deposit by TT before production and 70% payment by TT before shipment;
b. 30% deposit by TT before production and 70% L/C at sight before shipment;
c. 100% L/C at sight.
Mother machine we use for our production,imported from Spain and Italy.
Wooden case & ocean shipping
Wooden box, or as per customers' requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully.
Wooden cases are made of fumigated material and special ordered according to the sizes of different machines. Suitable for transportation and land.
Looking for agents worldwide
With years of development, we have entered into international market and gain good reputation for our machines.
In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.
Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.
And if you have any requirements, please let us know. We will try our best to meet your requirements.
We are looking forward to establish long-term business relationship with you!
