VMC1270 Chinese Vertical CNC machining center and milling machine
- 500 Set / Sets per Month
- SHANGHAI for VMC1270 Chinese Vertical CNC machining center and milling machine
- T/T
You May Like
-
VMC1270 hard rail Vertical CNC machining center and milling machine
-
VMC850 CNC milling machine,CNC machining center
-
TY-SP 15 series gantry type CNC machining center
-
TOM-SP2202B Planer type china cnc gantry vertical milling machine
-
china V65 High precision low price min small portable CNC milling lathe and milling Machine
-
V65 High precision low price min CNC milling lathe multi-purpose Machine
Product Details
Condition | New | Place of Origin | Yunnan, China | |
Brand Name | HHT | Model Number | VMC1270 | |
Type | Vertical | CNC or Not | CNC | |
Voltage | Customer Requirement | Power(W) | 30kw | |
Dimension(L*W*H) | 3300*2800*2250mm | Weight | 9000kg | |
Certification | ISO/CE | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
VMC1270 Chinese Vertical CNC machining center and milling machine
Main features of VMC machines:
The vertical machining center is applicable to process small complex parts like plates, mold
and box types. This machine is good at milling, boring, drilling, tapping and cutting.
Specifications X/Y/Z AXIS HARD GUIDEWAYS | |||
Item Model | Unit | VMC-1270 | |
working tale size | mm | 700x1360 | |
X/Y/Z travel | mm | 1200/700/600 | |
Distance between spindle end and table | mm | 150-750 | |
Distance between spindle center and column guide way | mm | 785 | |
Maximum weight of working table | kg | 1000 | |
table-T-slot | mm | 5-18-152.5 | |
X/Y/Z axis rapid feed | M/min | 18 | |
three axis working rapid speed | mm/min | 8000 | |
X.Y.Z axis screw mandrel size | mm | 5010 | |
positioning accuracy | mm | ±0.005/300 | |
repeat positioning accuracy | mm | ±0.003 | |
spindle speed | rpm | 8000 | |
spindle taper | mm | BT50/155 | |
control system | / | MISTUBISHI M70VA/ SIEMENS 828D BASIC/ FANUC0I-MD | |
torque force of spindle motor | nm/kw | 70/15 | |
torque force of X.Y.Z motor | nm | 22.5-64 | |
pneumatic source requirement | Kg/Cm2 | 6 | |
power consumption | kva | 30 | |
machine size | mm | 3300*2800*2250 | |
machine weight | kg | 9000 |

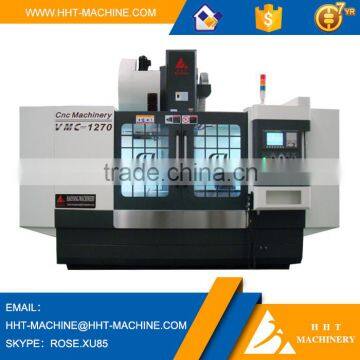

Photos of VMC1270:
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
a. 30% Deposit by TT before production and 70% payment by TT before shipment;
b. 30% deposit by TT before production and 70% L/C at sight before shipment;
c. 100% L/C at sight.
Mother machine we use for our production,imported from Spain and Italy.
Wooden case & ocean shipping
Wooden box, or as per customers' requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully.
Wooden cases are made of fumigated material and special ordered according to the sizes of different machines. Suitable for transportation and land.
