220v TCK40LM high quality mini Lathe Machine
- 200 Set / Sets per Month
- shanghai
- T/T
You May Like
-
Hot sale TCK-32L cheap high precision cnc Lathe Machine
-
TCK-45LS CNC Lathe Machine Tool with the function of side drilling milling
-
TCK-45LS CNC Slant bed lathe machine tool with power tool
-
TCK-45LS CNC Turning Center, Small CNC lathe Machine for Sale
-
TCK-45LS Small CNC Turning Center, Mini CNC Lathe Machine Price
-
TCK-32L/42L High speed and rigidity cnc slant lathe machine in lower price
Product Details
Condition | New | Type | Horizontal | |
CNC or Not | CNC | Automatic Grade | Automatic | |
Max. Swing Diameter | 380mm | Place of Origin | Yunnan, China | |
Brand Name | HHT | Model Number | TCK40LM | |
Voltage | 220V | Power(W) | 5.5KW | |
Dimension(L*W*H) | 2.3x1.6x1.6m | Weight | 2500kg | |
Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

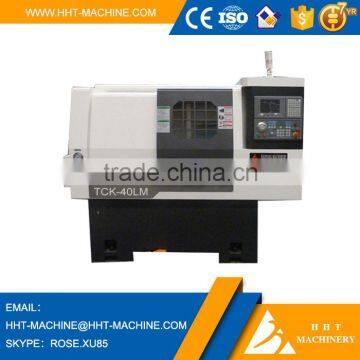

220v TCK40LM high quality mini Lathe Machine
220v TCK40LM high quality mini Lathe Machine
1. what are the specifications for the CNC LATHE?
Spec. | Name | Unit | TCK-32L | TCK-40LM | TCK-42L |
Processing range | Max. swing diameter over bed | mm | 350 | 400 | 420 |
Max. processing diameter | mm | 320 | 380 | 420 | |
Max. workpiece length | mm | 200 | 250 | 330 | |
Max. hole bore of bar | mm | 32 | 45 | 45 | |
Spindle/cylinder/chuck | Spindle nose | / | A2-4 | A2-5 | A2-5 |
Spindle bore | mm | 45 | 56 | 56 | |
Spindle speed | rpm | 6000 | 5000 | 5000 | |
Power of spindle motor | KW | 5.5 | 5.5 | 5.5 | |
Hydraulic cylinder/chuck | / | 5" | 6’’ | 6" | |
Feed of X/Z | Power of motor X | kw | 0.8 | 1.3 | 1.3 |
Power of motor Z | kw | 1.3 | 1.3 | 1.3 | |
X travel | mm | 400 | 450 | 480 | |
Z travel | mm | 300 | 300 | 350 | |
Rapid traverse of X/Z | mm | 24 | 24 | 30/24 | |
Positioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |
Repeatability accuracy | mm | ±0.005 | ±0.005 | ±0.005 | |
Type of guideway | / | Linear guideway 30mm | Linear guideway 30mm | Linear guideway 30mm | |
Hydraulic turret | Tool position | pcs | Gang type tools | Gang type tools | Gang type tools |
Square tool holder | mm | 20 | 20 | 20 | |
Round boring tool holder | mm | 20 | 20 | 20 | |
Changing time between neighboring tools | sec | 0.25 | 0.25 | 0.25 | |
Dimension | L×W | m | 2.1x1.6x1.5 | 2.3x1.6x1.6 | 2.2x1.75x1.8 |
Weight | kg | 2400 | 2500 | 2800 |
Products are dismantled into different parts, coated with rust-proof paint and wrapped with a plastic cover. The parts will be put into fumigated wooden cases and loaded into containers as planned. Inside the container, the parts will be fastened with iron cable.
Any colors, any logo acceptable. Free training in our factory is available. Leave an inquiry to know more details about price, packing, shipping and payment, etc.
Huaian Haoyang Machinery CO., LTD., located in Jiangsu, one of the most developed province of China. We are an industry and combination enterprise with several years’ development. HAOYANG has gained its position of prominence over the years in the field of CNC Machining Center, CNC Lathe Machine, Boring and Milling Machines for large size components. HAOANG boring and milling machines can be used in the fields like energy, aerospace, shipbuilding, diesel engine, defense, earthmoving and general mechanics.
We have already passed the ISO9001 and CE authentication. The trade part is the agent of CNC machines like boring machine, CNC Milling Machine, CNC lathe, machining centers and so on. They are well known for their strength, construction, durability, low maintenance cost and ease of operation.We do business with sincerity and honesty, and welcome anyone who wants to establish business relationship with us.
Q1: how to buy the machines from your company?
A1: 1) please send your inquiry from the bottom of the page, or please call us directly. 2) We will discuss more details after getting in touch with each other.
3) Then we send you INVOICE with our bank account and you pay the money;
4) We start production as soon as we get the money;
5) We deliver the machine by sea to the port in your country.
Q2: what is your payment term?
A2: we prefer 30% TT as deposit and 70% TT before sending machine.
Q3: what is your warranty for the machine?
A3: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
Q4: Can we visit your factory?
A4: of course! You are the most welcome to visit our factory and check the machines in person. Please let us know your plan before you come, and we will pick you up in the airport or at station.
Q5: Do we need to install the machines?
A5: For small machines like VMC and CNC Lathe, there is no need to install. We will send the machines as whole part. For large machines, like Gantry Milling machines and Boring Milling machines, you need to install the machines, or we will send our engineers to your place for installation, if it is necessary.
