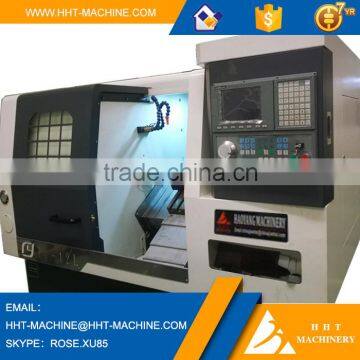

TCK-45H Hard rail cnc slant bed lathe, cnc lathe tool for sale

Specs

Name

Unit

TCK-40L

TCK-45L

TCK-45H

Processing range

Max. swing diameter over bed

mm

400

600

600

Max. processing diameter

mm

360

450

450

Max. processing diameter over toolpost

mm

170

315

315

Max. workpiece length

mm

350

500

500

Max. hole bore of bar

mm

45

52

52

Spindle cylinder/chuck

Spindle nose

/

A2-5

A2-6

A2-6

Spindle bore

mm

56

65

65

Spindle speed

rpm

4500

4000

4000

Power of spindle motor

kw

7.5

11

15

Hydraulic 3 jaw chuck

/

6"

8"

8"

Feed of X/Z

X axis motor power

kw

1.3

1.8

1.8

Z axis motor power

kw

1.3

1.8

3

X axis travel

mm

210

225

225

Z axis travel

mm

400

610

610

X/Z axis Rapid traverse

mm/min

30

24

20

Positioning accuracy

mm

±0.003

±0.003

±0.003

Repeatability accuracy

mm

±0.005

±0.005

±0.005

Type of guideway

/

Linear guideway 35mm

Linear guideway 35mm

Hard guideway 35mm

Hydraulic turret

Tool position

pcs

80/10T

100/12T

100/12T

Square tool holder

mm

20

25

25

Round boring tool holder

mm

32

40

40

Changing time between neighboring tools

sec

0.25

0.25

0.25

Tailstock

Dia. of quill

mm

65

75

75

Travel of quill

mm

80

100

100

Taper of quill

/

MT-4

MT-4

MT-4

CNC Controller

CNC Controller

/

SYNTEC

SYNTEC

SYNTEC

Dimension

L*W

m

2.0*1.6*1.66

2.3*1.8*1.76

2.3*1.8*1.76

Weight

kg

3000

3800

3800

Standard Accessories

Optional accessories

No.

Name & Spec.

Name& specs

1

Machine bed

Automatic safety door

2

CNC Controller

Simple parts catcher

3

X axis ball screw

Hydraulic bar feeder

4

Z axis ball screw

Air blast device

5

X/Z axis screw bearing

Auto chips conveyor

6

X, Z axis guideway

Part deliver belt

7

Hollow type hydraulic chuck

8

Hollow type hydraulic cylinder

9

Hydraulic turret

10

Round boring tool holder

11

Square tool holder

12

Integral type spindle

13

Spindle bearing

14

Collant system

15

Outside hydraulic system

16

Auto lubrication system

17

Master switch, contactor /overload protector

18

Full-closed guard

19

. Guiding light

20

Working light

21

Foot switch

22

Operation Manual

23

Maintenance tools
