Product Details
| Gearing Arrangement | Helical | Output Torque | up to 28000Nm | |
| Rated Power | 0.18~160kw | Input Speed | <2000rpm | |
| Output Speed | 0.1~560rpm | Place of Origin | Zhejiang, China | |
| Model Number | RC37~RC187 | Brand Name | Flying Knight |
Product Description
Product Description
1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.
General Technical data
| Housing material | HT250 high-strength cast iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | tempering, cementiting, quenching, etc. |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Noise (MAX) | 60~68dB |
| Temp. rise (MAX) | 40°C |
| Temp. rise (Oil)(MAX) | 50°C |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
| Brand of bearings | China Top brand HRB,LYC,ZWZ or other brands requested, NSK... |
| Brand of oil seal | NAK--- Taiwan or other brands requested |
RCseries reducer Technical data
| Model | Shaft Dia. | Center Height | Output Flange Dia. | Power | Ratio | Permitted Torque | Weight |
| Solid (mm) | (mm) | (mm) | (kw) | (Nm) | (KGS) | ||
| RC37 | 25k6 | 90h13 | 120/160 | 0.12~0.75 | 5~136 | 150 | 10 |
| RC47 | 30k6 | 115h13 | 160/200 | 0.25~2.2 | 5~173 | 300 | 15 |
| RC57 | 35k6 | 115h13 | 200/250 | 1.18~5.5 | 5~173 | 400 | 21 |
| RC67 | 35k6 | 130h13 | 200/250 | 0.37~7.5 | 5~170 | 500 | 27 |
| RC77 | 40k6 | 140h13 | 250/300 | 0.55~11 | 5~192 | 750 | 35 |
| RC87 | 50k6 | 180h13 | 300/350 | 0.75~18.5 | 5~192 | 1250 | 65 |
| RC97 | 60m6 | 225h13 | 350/450 | 1.5~30 | 5~197 | 2400 | 120 |
| RC107 | 70m6 | 250h13 | 350/450 | 2.2~45 | 5~197 | 3600 | 165 |
| RC137 | 90m6 | 315h13 | 450/550 | 4~55 | 5~197 | 6600 | 255 |
| RC147 | 110m6 | 355h13 | 450/550 | 7.5~90 | 5~195 | 10700 | 370 |
| RC167 | 120m6 | 425h13 | 550/660 | 11~132 | 8~186 | 14800 | 700 |
| RC187 | 160m6 | 510h13 | 660/770 | 15~160 | 8~186 | 28000 | 1500 |
| Remark: the weight without oil and motor, shaft and flange input add 10%. | |||||||
R gearmotor for wood pellet machine reductorfor conveyor

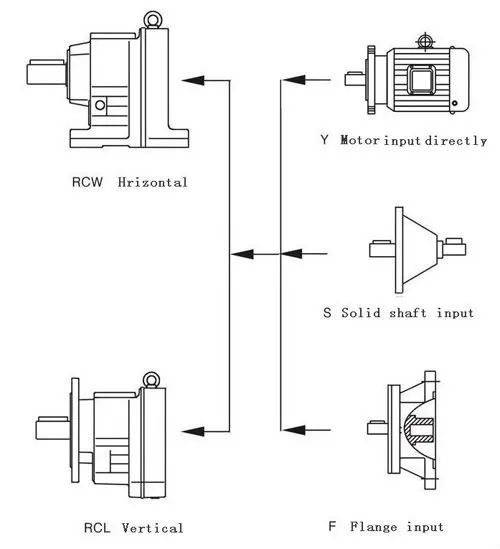

Model exression

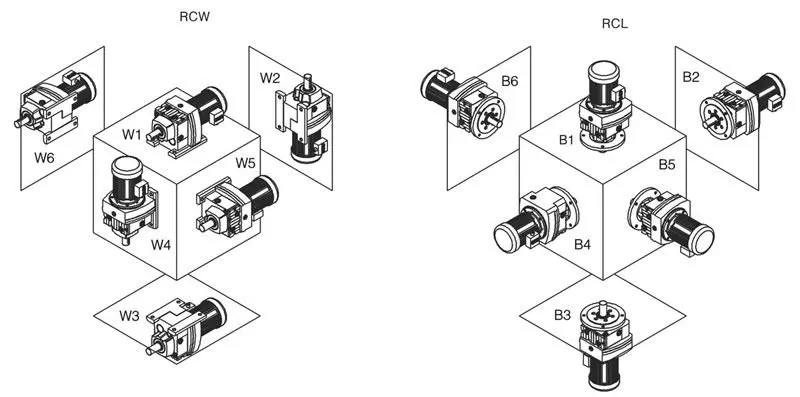

RCseries installation direction diagram

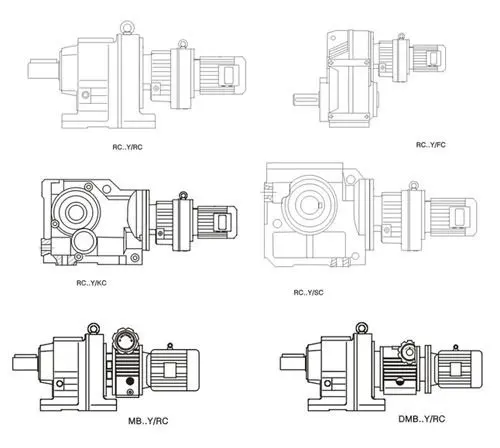

Combined system
Packaging & Shipping
