WJ series alloy aluminium worm reducer for baked chips machinery
- Ningbo or Shanghai
- T/T
You May Like
-
Alloy aluminium worm gear boxes for baked potato chips machine
-
worm reducer for baking tools equipment
-
WJ series alloy aluminium worm reducer for bamboo shoots cutting machine
-
WJ series alloy aluminium worm reducer for banana chip cutter machine
-
aluminium worm gearbox-WJ series alloy aluminium for banana chip machine
-
Alloy aluminium worm gear boxes for banana chip maker machine
Product Details
| Gearing Arrangement | Worm | Output Torque | up to 880Nm | |
| Rated Power | 0.09~7.5kw | Input Speed | 1500rpm | |
| Output Speed | 1.3~193rpm | Place of Origin | Zhejiang, China | |
| Model Number | WJ30~WJ130 | Brand Name | Steel knight |
Product Description
Specifications
worm reduceraluminium alloy square housing, small size, elegant appearance, low noise, easy install.
Good quality, Low price.
We are the leading manufacturer specialized in designing and manufacturing different kinds of gearbox in China. Manufacturing according to the ISO9001:2008 quality control system guidelines. We help our customer develop special gearbox for their application and OEM service offered.
Product features of WJ series worm reducer
1. WJ series worm gearbox adopt aluminium alloy or cast iron square housing, small size and elegant appearance.
2. It is flexible and convenient to install,steady running,efficent radiator,low noise,high carrying ability.
3. The products have been widely used for machinery equipment, such as chemical, plating, ceramic, pharmaceutical, leather, foods,beverage,etc.

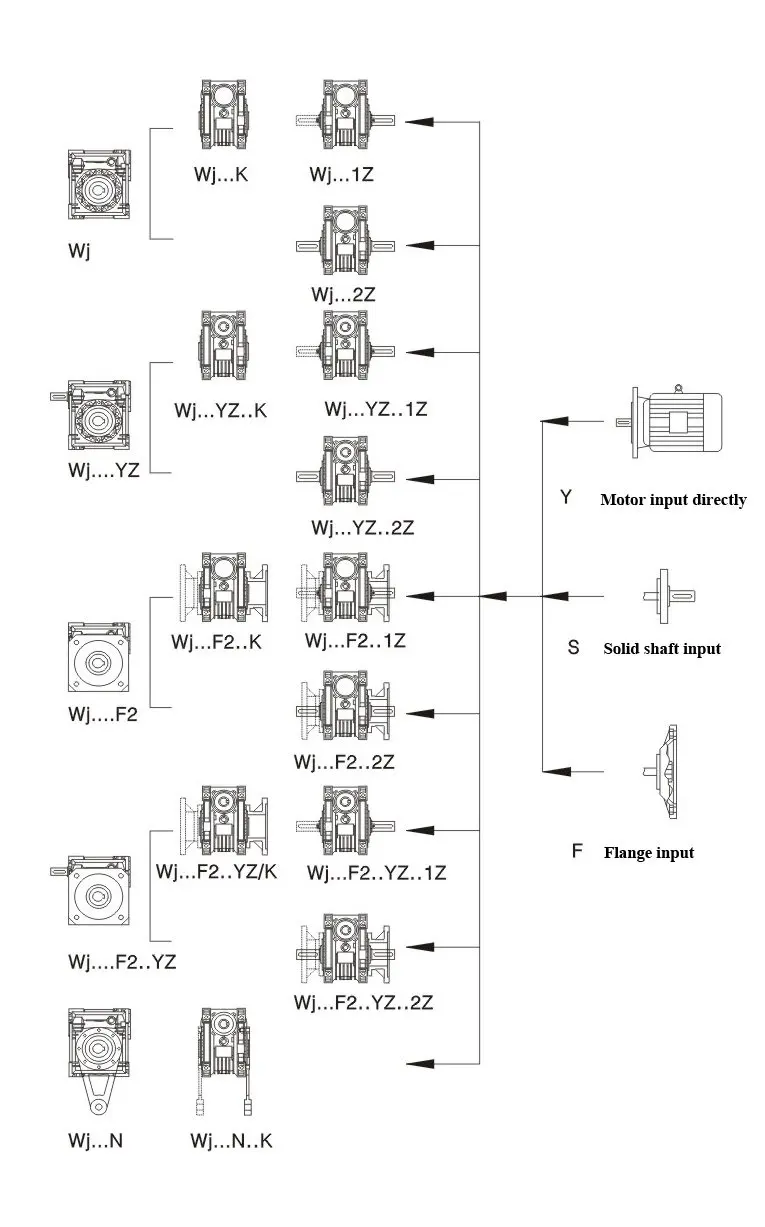

+Input form: flange input, motor input, shaft input;
+Output form:hollow shaft, solid shaft or output flange;
+Materials of speed reducer body: Aluminum alloy or cast iron;
+Materials of worm-wheel: ZCuSn10Pb1;
+Noise of speed reducer: ≤50dB;
WJ series worm gearbox | |||||
Model | Shaft Dia. | Center Height (mm) | Power (kw) | Ratio | Permitted torque(Nm) |
Wj30 | 25k6 | 90h13 | 0.09~0.3 | 7.5~100 | 22 |
Wj40 | 30k6 | 115h13 | 0.12~0.5 | 7.5~100 | 55 |
Wj50 | 35k6 | 115h13 | 0.18~0.7 | 7.5~100 | 120 |
Wj63 | 35k6 | 130h13 | 0.37~1.5 | 7.5~100 | 175 |
Wj75 | 40k6 | 140h13 | 0.55~3 | 7.5~100 | 280 |
Wj90 | 50k6 | 180h13 | 0.75~4 | 7.5~100 | 425 |
Wj110 | 60m6 | 225h13 | 1.1~5.5 | 7.5~100 | 585 |
Wj130 | 70m6 | 250h13 | 1.5~7.5 | 7.5~100 | 850 |
For more parameters and dimensions, please contact with us. Welcome to send us inquiry!
More details information of WJ series worm gearbox
WJ series alloy aluminium worm reducer for baked chips machinery
