Belt Sway Switch

Specifications

                            Belt Training Switch

Product introduction

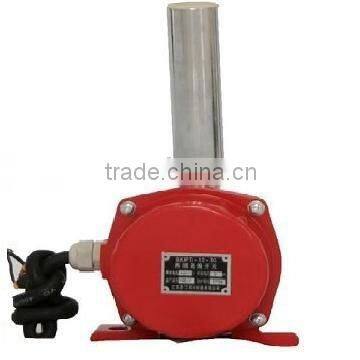

 Belt training switch
The Conveyor Belt sway Switch is used for detecting the deflection value.

No.1 Usage:
The Conveyor Belt Misalignment Switch is used for detecting the deflection value and distortion of the belt.
It keeps the edge of belt from damaging and the material leakage due to deflection of the belt. It is a kind of protective switch that outputs alarm and shutdown signals automatically.

No.2 Working Principle & Structural Characteristics:
The misalignment switch has two level active function.

 The first level switch is used for alarm.
 It connect the signals with adjusting deflection device, it can realize the function that there is no need shutdown but to adjust automatically.

The second-level is used for shutdown. If connect the signals with control lines, it can be realize the function that it will stop as serious deflection of the belt.
After eliminating the obstacles, the belt will depart from the vertical miller and it will be restore automatically.

In order to adopt the long-term outdoor usage, the product is adopted integrated closed technics. And the inner accessories are adopted vulcanization technics. The outside accessories except the shell are adopted multi-layer chromeplate technics. The shell is adopted casting aluminum, and the surface adopts electrostatic spraying technics to adapt the usage in bad environment.



Main Technical Index
 Ambient temperature   40 °C to +60 °C
Relative temperature not more than 90%
Atmospheric pressure 80 ~ 110 Kpa
Altitude not more than 2,000 M
Useful time the switch 10,000
Insulation voltage AC1000V, testing one minute
