Conveyor Belt Vulcanizing Rubber Press Machine

Specifications

         Conveyor Belt Vulcanizing Rubber Press Machine

Conveyor Belt Vulcanizing Rubber Press Machine--vulcanizing equipment and tools for repairing and splicing conveyor belt. It's also called vulcanizing press, vulcanizer machine, hot vulcanizing press, or conveyor belt vulcanizing press.

Technical Parameters:

1. Vulcanization pressure: 1.0 to 2.0 Mpa;
2. Vulcanization temperature: 145 °C ;
3. Difference in surface temperature of vulcanized plate: ± 3 degree;
4. Warm up time (at normal temperature to 145°C ): ≤30 mins;
5. Power supply voltage: 220V to 660v;  50/60 Hz; 3Phases;
6. Output power of Electronic Control Cabinet ≤36 KW (Different model different power);
7. Temperature adjustment range: 0 to 200° ;
8. Timing adjustment range: 0 to 99 min;
9. After the pressurization of 0.8 MPa, the gap between upper and lower heating plate is not more than 0.4 mm.

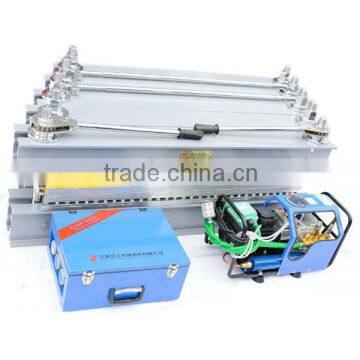

Parts of conveyor belt vulcanizing rubber press machine

• Cross beam  10 to 12 pcs
• Bolts &nuts   10 to 12 pcs
• Heating plate 2 pcs
• Water Plate   1 pc
• Heat insulation plate 2 pcs
• Clamp device 2 pcs
• Primery/ input cable 1 pc*10m
• Secondary/ output cable 2 pcs*5m
• High pressure pipe with quick joints 1 pc*1.5m
• Ratchet wrench 2 pcs
• Standard control cabinet 1 set
• Pump(electrical pump or manual pump) 1 set

Application of conveyor belt vulcanizing rubber press machine

• Electric power plant
• Metallurgical plant
• Mining
• Textile industry
• Douck
• Chemical industry
• Food industry
• Rubber industry

When you order for rubber conveyor belt splicing press

Joint length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary. Before quotation, make clear for model and spedification of product will be help you save time.

Please note that below items need to advise:

• Voltage, such as 380v 50hz 3phases
• Belt width
• Splicing length(joint length)

Please note that below items are optional:

• Water cooling system (less than 10 mins cool from 145 °C to normal temperature) or natural cooling system(more than2 hours to cool down)
• Electrical pump or manual pump

Looking forward to cooperate with you, many thanks.
