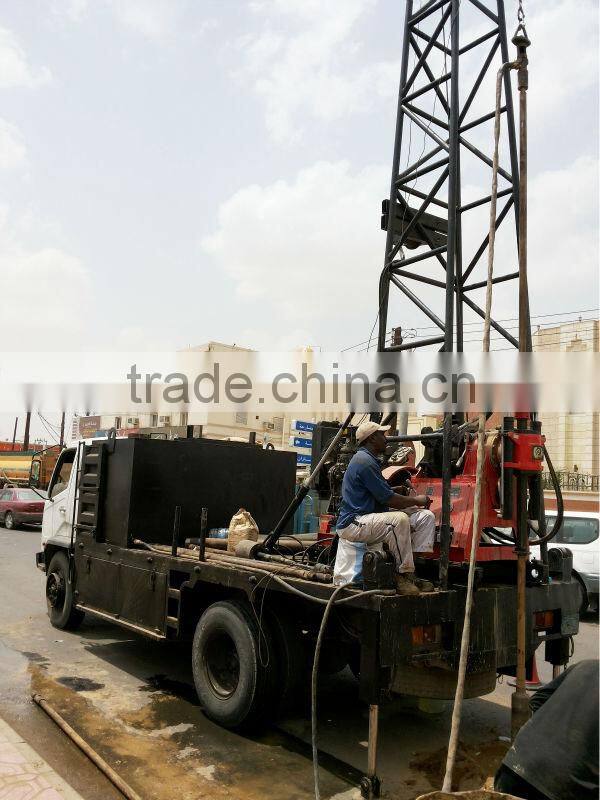

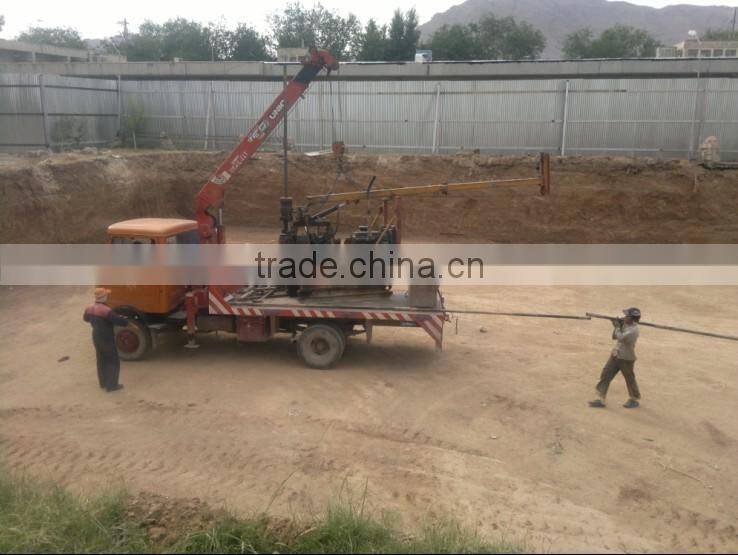

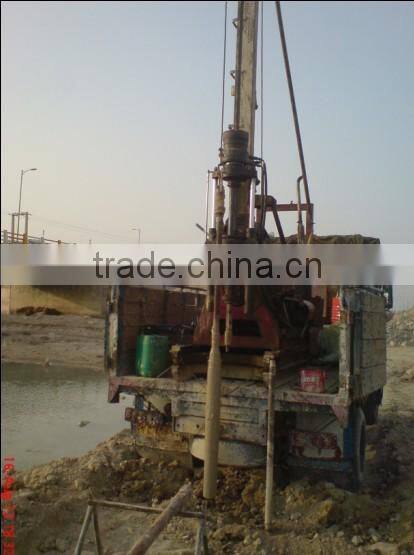

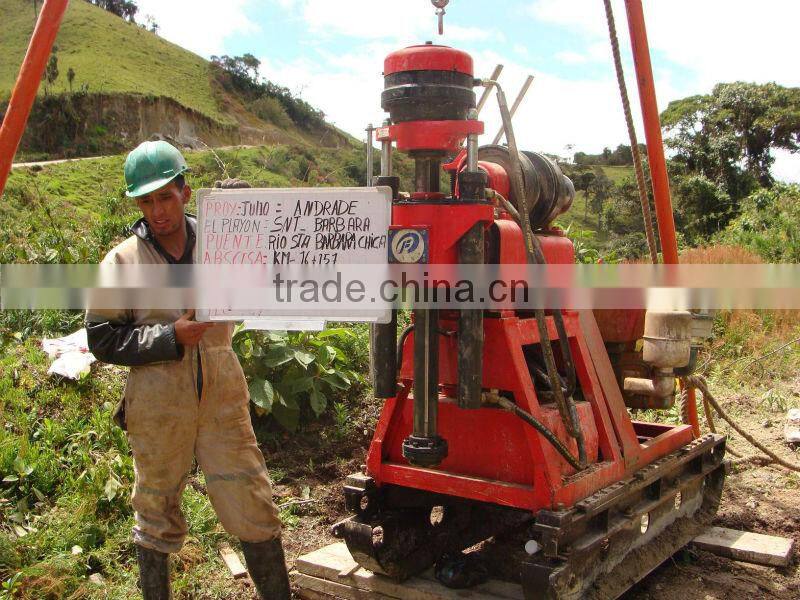

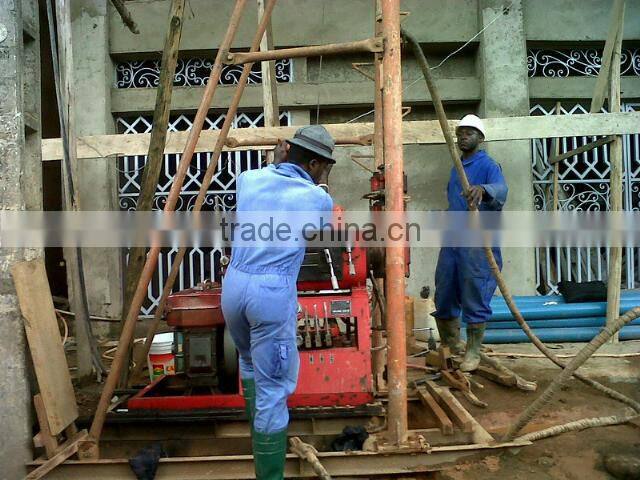

HGY-300 Multifunctional Geothermal Well Drilling Rig Machine
- guangzhou/shenzhen/shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Rotary Drilling Rig, small, spindle ,mini ,deep,HGY-300, 300m | |
| Power Type | Diesel | Place of Origin | Hunan, China | |
| Brand Name | Flydisc | Model Number | HGY-300 | |
| Usage | Other, geothermal well drilling | Voltage | 220v | |
| Power(W) | 26.5kw | Dimension(L*W*H) | 2000*900*1600MM | |
| Weight | 1200KG without power | Certification | CE,ISO9001:2008 | |
| Warranty | 6months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Drilling depth: 300mDrill dia.: 75mm
Take rock core sample in mining exploration, geological survey
Company introduction:
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features :
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
Technological Data of Drilling Rigs:
Model | HGY-300 Drilling Rig |
Drilling depth( m) | 300 |
Drilling rod diameter.(mm) | Φ50 |
Head angle range | 0~360° |
Movable cylinder stroke (mm) | 400 |
Spindle speed( r/min) | Positive rotation rate:50 87 137 189 230 399 629 868 Reverse rotation rate: 39 180 |
Spindle hole diameter( mm) | Φ63/Φ95 |
Spindle output torque max(N.M) | 2800 |
Spindle stroke(mm) | 530 |
Lifting power max( KN) | 60 |
Driving force max(KN) | 40 |
Lifting speed( m/s) | 0.41 0.72 1.13 1.6 |
Lifting capacity(single) max(KN) | 30 |
Steel wire rope diameter (mm) | Φ13 |
Mode of chuck | hydraulic chuck or pillar-type chuck |
Weight(power unit excepted)(Kg) | 1200 |
Overall dimensions(mm) | 2315*900*1700 |
Diesel engine model | K4100D(30KW) |
Electromotor model | Y180L-4( 22KW) |

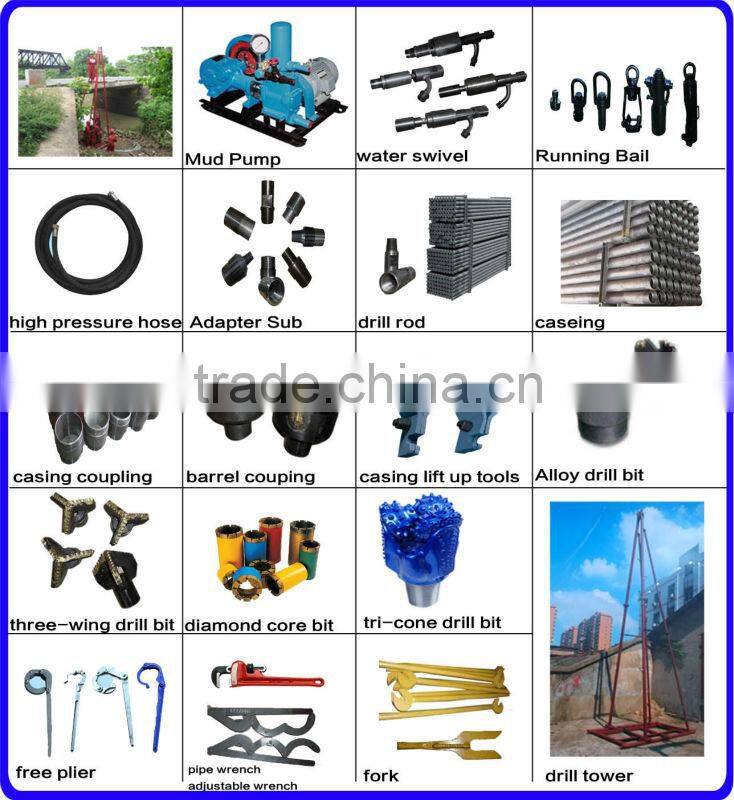

Drill tools for geothermal well
Q:How to choose drilling rig?
Answer:drilling machine including drilling rig, mud pump, engine ( diesel engine or motor) and tower. Choose drilling machine, should be based on drilling purpose, hole depth, hole structure and transportation condition.
