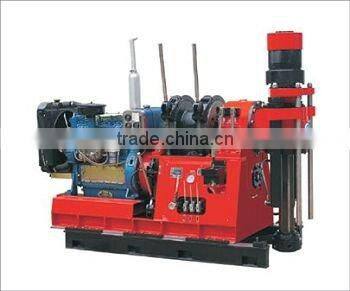

Drilling Machine for Mining HGY-1000
- shenzhen /shanghai/ guangzhou
- T/T
You May Like
-
Hot Selling! HGY-200 Small Mobile Core Drilling Rig Machine
-
HGY-300 Drilling Rig Machine for Gotechnical Prospecting
-
HGY-2000 Wire-line Multifunctional Core Drilling Rig Equipment
-
Geological Core Drill Rig HGY-200
-
HGY-1000 Deep Hole Drilling Compact Multi-purpose Core Drilling Rig Machine
-
Geological Core Drill Machine HGY-200
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Electric | Place of Origin | Hunan, China | |
| Brand Name | FLYDISC | Model Number | HGY-1000 | |
| Usage | Coal | Voltage | 220v | |
| Power(W) | 41kw | Dimension(L*W*H) | 2400*1020*1765 | |
| Weight | 1720kg | Certification | ce ISO9001:2008 | |
| Warranty | 6 months | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Drilling Machine for mining1000m
a kind of core drilling machine used for soil/rock sample taking and test in mine exploring
Drilling Machine for mining HGY-1000
Brief introduction:
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features of Drilling Machine for mining HGY-1000 :
1) Compact in structure and light in weight.
2) High reliability, good performance and durability
3) Common auto parts, such as clutch and declutch structure, transmission case and shifting structure.
4) Easy operation and high efficiency with synchronizer for shifting while the rig is running.
5) Suitable to wide range of rotation inner dia.Φ95mm
6) Be attached to the tower.
Drilling Ability of Drilling Machine for mining HGY-1000
Drilling depth: 1000m
Drill hole diameter: 75mm (46~250mm)
Technological Data of Drilling Machine for mining HGY-1000
Model | Drilling Machine for mining HGY-1000 |
Drilling depth( m) | 1000 |
Spindle speed( r/min) | Positive rotation rate: 51 93 160 246 350 149 268 463 710 1011 Reverse rotation rate: 57 164 |
Spindle stroke(mm) | 600 |
Lifting power max( KN) | 80 |
Driving force max(KN) | 60 |
Spindle output torque max(N.M) | 5055 |
Spindle hole diameter( mm) | Φ95 |
Lifting speed( m/s) | 0.44 0.80 1.38 2.12 3.02 |
Lifting capacity(single) max(KN) | 35 |
Diameter & Length of drum(m) | Φ15*100 |
Movable cylinder stroke (mm) | 400(+-10) |
Max distance from hole (mm) | 250 |
Gear oil pump model | CB-F32C-FL |
Nominal displacement( ml/r) | 32 |
Nominal pressure( MPa) | 16 |
Oil pump nominal rotation velocity(r/min) | 1800 |
Electromotor model | YB200L-4 |
Power( kw) | 30 |
Diesel engine model | K4100ZD |
Power( kw) | 36 |
Speed( r/min) | 1800 |
Weight(power unit excepted)(Kg) | 1720 |
Overall dimensions(mm) | 2400*1020*1765 |
Applications Drilling Machine for mining HGY-1000
1.Construction drilling of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction
2. Coal mining exploration, Ore exploration
3. Small hole diameter water well drilling
4. Geothermal pipe-installing for heat pump
5. Small-diameter hole foundation piling drilling;
