XUL-100 Mobile Engineering Survey Drilling Rig for Sale
- guangzhou /shenzhen/ shanghai
- T/T
You May Like
-
High Efficiency HGY-2000 Engineering Survey Drilling Rig Machine for Selling
-
HGY-1000 High Perfomance Wire-line Core Sample Drilling Rig Machine for Sale
-
HGY-1500 Man Portable Drilling Rig
-
HGY-2000 High Efficiency Core Sample Drilling Rig Equipment for Sale
-
XUL-100 Mini Water Well Drilling Rig Machine
-
HGY-200 Hydraulic Water Well Drilling Rig, Well Water Drilling Machine
Product Details
| Condition | New | Type | Other, Rotary Drilling Rig, small, spindle ,mini ,deep,XUL-100, 100m | |
| Power Type | Other, Diesel or electric | Place of Origin | Hunan, China | |
| Brand Name | Flydisc | Model Number | XUL-100 | |
| Usage | Other, engineering survey drilling | Voltage | 220v | |
| Power(W) | 12.1kw | Dimension(L*W*H) | 1200*650*1300MM | |
| Weight | 550KG without power | Certification | CE,ISO9001:2008 | |
| Warranty | 6months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1) Advanced capability and high reliability.2) Excellent design and easy operation.
3) Alternative-designed unit construction

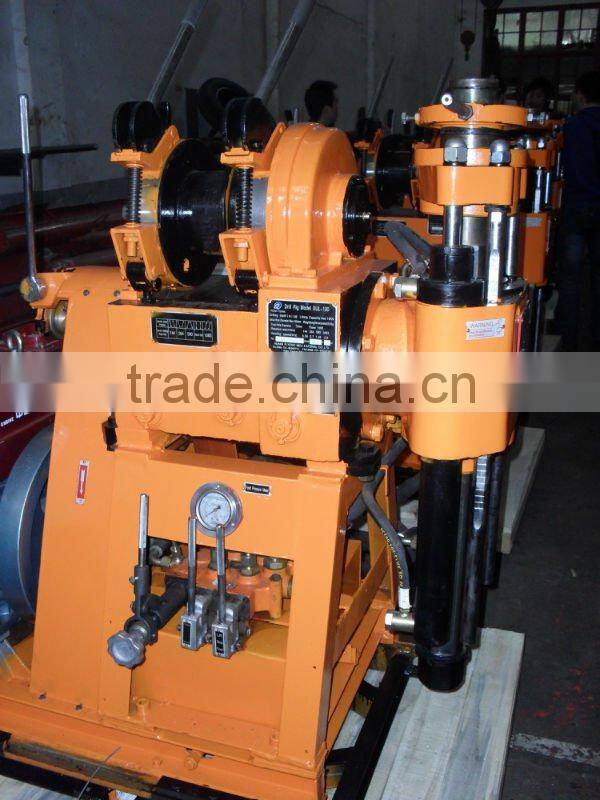

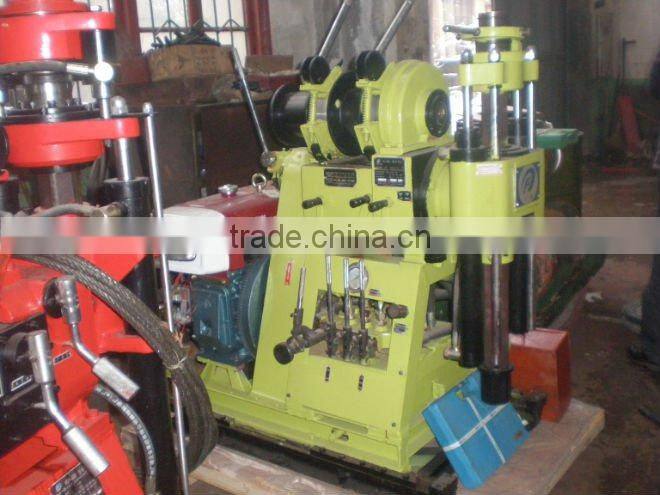

XUL-100 drilling rig
This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.
Brief introduction of XUL-100 drilling rig :
1. 50 years professional manufacture
2. Certificate: ISO9001:2008

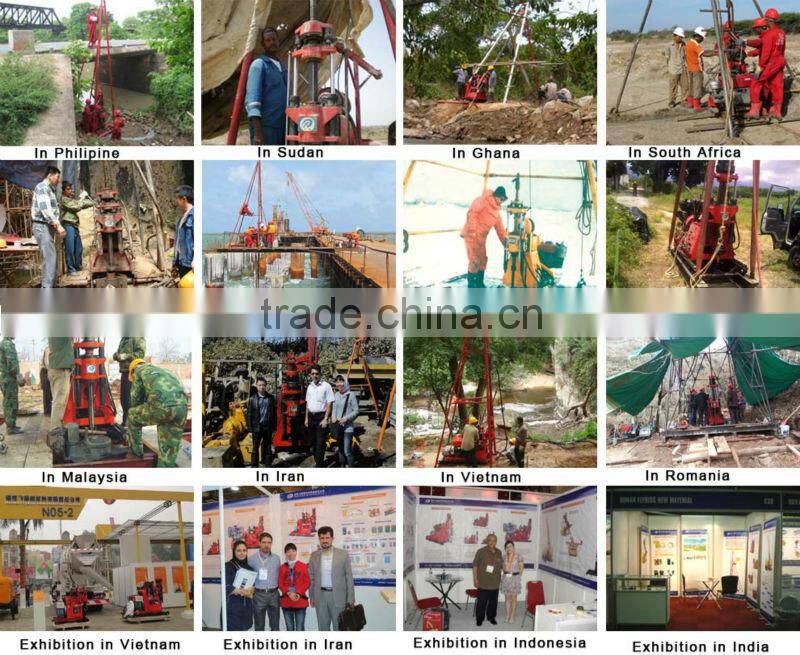

3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Historical view of XUL-100 drilling rig :

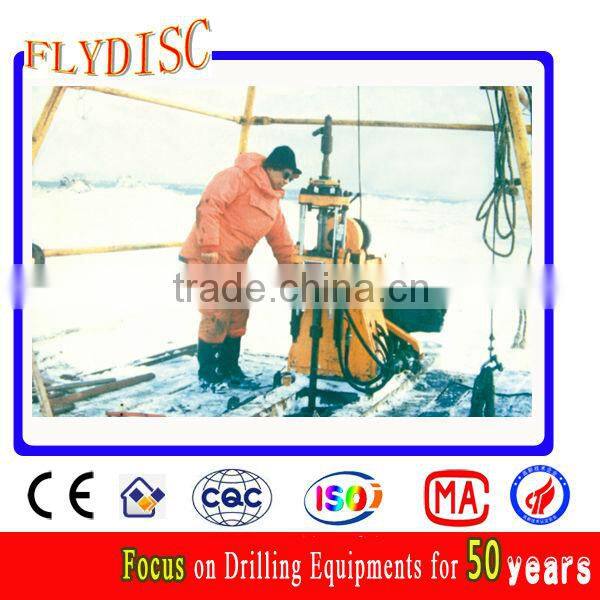

1) 1992 the first drill rig for the sample boring from the deep stratum of antarctica in the world used by the Chinese Academy of science.
2) Best Quality Awards belonging to China National Nuclear Ministry Hunan province.

Features of XUL-100 drilling rig :
1) Advanced capability and high reliability.
2) Excellent design and easy operation.
3) Alternative-designed unit constructions.
4) Accessories in common use.

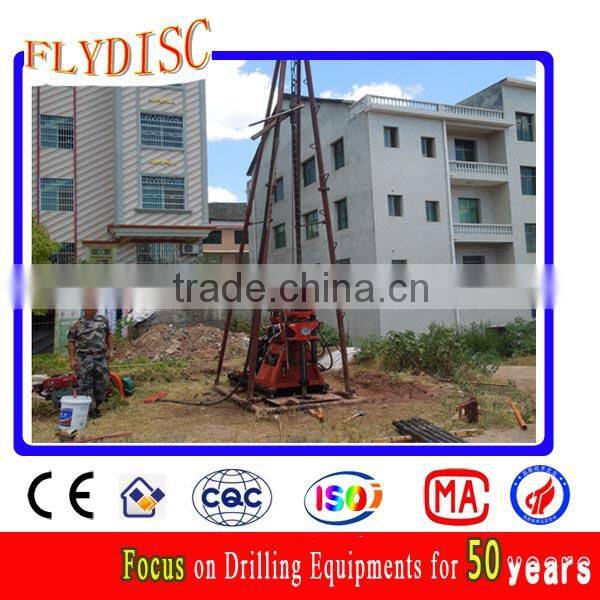

Use of XUL-100 drilling rig : for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of Drilling Rigs:
Model | Drilling Rig(XUL-100) |
Drilling depth( m) | 100 |
Drilling rod diameter.(mm) | Φ42 |
Head angle range | 360 |
Movable cylinder stroke (mm) | 300 |
Spindle speed( r/min) | 144 264 590 1083 |
Spindle hole diameter( mm) | Φ54 |
Spindle output torque max(N.M) | 800 |
Spindle stroke(mm) | 370 |
Lifting power max( KN) | 30 |
Driving force max(KN) | 23 |
Lifting speed( m/s) | 0.36 0.7 1.49 2.9 |
Lifting capacity(single) max(KN) | 10 |
Steel wire rope diameter (mm) | 11 |
Mode of chuck | Hand lever chuck |
Weight(power unit excepted)(Kg) | 550 |
Overall dimensions(mm) | 1200*650*1300 |
Diesel engine model | Zs1100 ( 12.1KW) |
Electromotor model | Y160M-4 ( 11KW) |
Q:Rig using common sense?
Answer:
(1) class maintenance:
The outer surface of the drill is wiped clean, and pay attention to the rig substructure slideway, vertical surface cleaning and good lubrication.
The examination of all open bolt, nut, insurance and other solid and reliable.
According to the lubrication requirements of the lubricating oil or grease, see Figure two and table a.
The check gearbox, gear box and the hydraulic system the location of oil tank.
The check around the oil leakage and as the condition to be treated.
The elimination in the class occurred within the other fault.
(2) peripheral maintenance:
The complete class maintenance programs required.
The removal of chuck and slips on the tooth surface dirt, mud.
The clean the inner surface of the brake oil, mud.
The excluded from this week 's fault.
(3) month maintenance:
The complete class, weekly maintenance programs required.
The disconnect chuck, cleaning slips and slips seat. Should be replaced if damaged.
The cleaning tank filter, replacement of deterioration or soiled by hydraulic oil.
The examination of the major components of the intact state, should be replaced if damaged, can not be wounded the work.
The complete elimination of the fault occurred in the month.
And if the drill does not use for a long time, the display part (especially the processing table. ) should becoated with grease.
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
