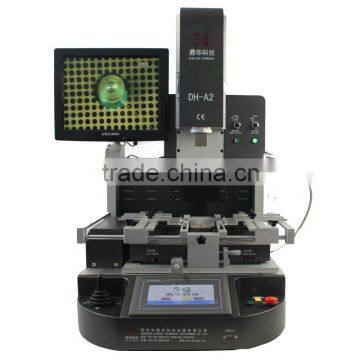

Semi-auto BGA Rework Station DH-A2 Optical Alignment BGA Rework Machine Quality Choice

Specifications

Semi-auto BGA Rework Station DH-A2 Optical Alignment BGA Rework Machine

Specification:

Structure:

Feature:

1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.

2.It uses precise K-type close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 deg C. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.

3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board

4.Flexible and convenient removable fixture on the PCB board which protectsand prevent damage to PCB. It can also adapt to rework various BGA packages.

5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement

6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface

7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen

8.accurate and precise temperature control

9.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.

10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.

11.CE certification, with emergency switch and automatic power-off protection device when emergency happens



We firmly believe the business principle of ‘diligence and honest will be paid off’ Science and technology constitute a primary productive force. With mutual efforts. Leading has achieved the core temperature-control technology with related patents. At the same time, our products has covered 3 series: the high-grade, middle-grade and low-grade and the development and production is made from manual, semi-auto. Our market expanded into such fields' individual repair, factories, education, military, aeronautical and space. At the same time. We established the point-of sales and end service at home and abroad.

Your satisfaction be our pursue. Adhering to customer-centric, market oriented, our company will wholeheartedly provide first class products and high efficient services for customers with the continuously innovation. We expects to cooperate with you to create resplendence hand in hand



Company Scenery





More Photos about DH-A2





About Packing:





Packing list:



1, DH-A2 BGA rework station (touch screen) 1 set

2, Displaye 1 set

3, Vacuum sucker Pad 3 piece

4, DH-A1 specification(manual) 1 copy

5, Hot air nozzle   5 piece  ( 31*31/38*38/41*41/34*34/55*55 )

6, Abnormity clip 6 piece

7, Blossom knob 6 piece

8, Supporting Screw 6 piece

9, External Temperature sensor 1 piece





Certification:





the products we sell one-year warranty.If you require technical support for any of your Bga rework station products, please contact our support team using the following details:







We always answer your questions: 24 hours a day, 7 days a week.
