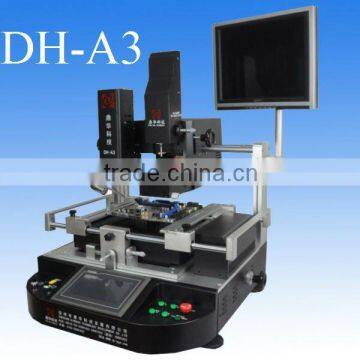

DH-A3,chip reballing machine,BGA rework station,sales promotion

Specifications

  Specifications:

DH-A3 main features

Three independent heaters

     The top heater and bottom heater is for heating the BGA chip, the infrared heater is for heating the whole PCB, so it can protect the PCB from uneven heating.

HD touch screen interface, PLC control

HD color optical alignment system

    HD color optical alignment system , optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm

Temperature compensation system

     K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C

Hot air nozzles

   Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

The way for supporting PCB board

    V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.

Cooling system

    Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.

Sound hint system. There is an alarm before the completion of each desoldering and soldering.

Certificate

    CE certification, with emergency switch and automatic power-off protection device when emergency happen

Company profile

 Chips  below can be repaired

   This BGA rework machine with 3 years warranty , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available.
