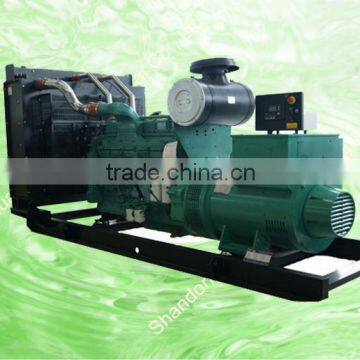

three phase 500kw standby diesel genset

Genset model:HL500GF

Prime power: NA

Standby power: 550KW/687KVA

Power factor: 0.8

Rated Voltage: 400/230V

Rated frequency (HZ): 50

Dimensions (mm) (L×W×H): 3750×1640×2050

Weight (kg): 4800

Specification of diesel engine

Engine Model: KTAA19-G6A

Manufacturer: CCEC

Governor: E

Air intake way: Turbo-charged

Cylinders/Arrangement: 6/L

Bore× Stroke(MM): 159×159

Fuel Consumption Rate(L/h): 127.8

Lubricating oil capacity(L): 50

Coolant capacity (L): 106

Compression ratio: 13.9:1

Displacement, total (L): 19

Net weight (kg): 1838

Engine speed (rpm): 1500

Max Power (kW): 610

Starting Method: DC24V electrical starting

Specification of alternator

Alternator model: HLF500

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1

Protection Grade: IP21

Altitude: ≤1000m

Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class: H

Telephone Influence Factor (TIF): ≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

Control System

Operating temperature: -20°C~60°C

Relative Humidity: 95%

Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )

Standard functions: Engine Control/Generator Monitoring/Generator Protection/

Engine Monitoring/Clear Text Display

Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,

Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine

Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)

Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains

Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

 Insulation Class: H
