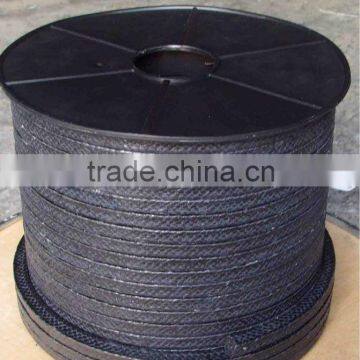

PTFE Aramid Fiber Baided Packing

Rotary

Reciprocating

Valve

Pressure:bar

31

150

150

Speed:m/s

22.8

2

1.5

pH Range

2 - 12

Temp. °C

-180 to  +260

SR Packing

Application range: All kinds of sealing material

Name

Material

Temperture °C

Pressure Mpa

PH value

SR -31 Carbonized Fiber Braided Packing

Shrink-proof synthetic yarn with a special heatresistant, silicon-oil-free assitive.

250

12

2-13

SR -32 Flexible Graphite Braided Packing

Braided packing made of flexible pure graphite with structural textile fibres.

-200-850

25

0-14

SR -33 PTFE Packing

PTFE packing with lubricating assitive.

250

15

0-14

SR -34 PTFE Braided Packing with Graphite

PTFE filament yarn with permanently added PTFE graphite dispersion. The specially developed silicon-oil-free substance has excellent sliding characteristics and is incorporated in the packing by a special process

250

10

2-13

SR -35 Asbestos PTFE Packing

High-quality asbestos yarn with permanently added liquid PTFE and lubricating silicon oil.

250

10

2-13

SR -36 Aramid(Kevlar) Braided Packing

A high-quality, smooth, synthetic aramide endless fibres(Kevlar) with PTFE impregnation and lubricant additive. Extremely hard wearing.

-100-260

30

2-13

SR -37 Remie Braided Packing

Ramie fibre with light-coloured. Special PTFE impregnation or lubricating additive for prevention of product contamination.

-50-140

20

2-13

SR -38 GFO braided Packing

PTFE filament yarn with permanently added QFO dispersion as lubrication additive

-200-280

10

0-14

SR -39 PTFE with Kevlar braided Packing

A high-quality combination consistion of graphite-incorporated PTFE with sliding surface reinforcment made of aramide endless fibres(Kevlar)

-100-250

15

0-14

SR -40 Cotton Braided Packing

Pre-impregnated, twisted cotton yarns, intensively re-impregnated during braiding.

-20-100

6

6-8
