Home > Products > Sealing & heat insulating material > Carbon fibre braied with PTFE gland packing

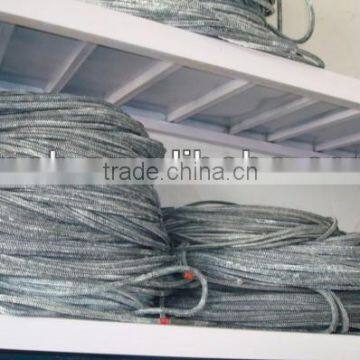

Carbon fibre braied with PTFE gland packing
- tianjin ningbo shanghai
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Style | Mechanical Seal | |
| Material | PTFE | Place of Origin | Hebei, China | |
| Brand Name | bright pearl | Model Number | Carbon Fibre PTFE packing |
Product Description
Specifications
Carbon Fibre PTFE packingSize : From 3 x 3 mm to 50 x 50mm
Description:
Carbon fiber packing is a braided packing made of carbonized poly acrylonitrile fiber and finished with PTFE dispersionand lubricant. It covers wide range of application, Relatively economical among non-asbestos packing.Carbonized fiber packing is to seal water, brine, factory waste, salt solutions, weak acids, mineral oil, etc. For centrifugal pumps, mixers, agitators, sterntubes. etc.
Application:
PTFE impregnated carbonized fiber packing is to seal water, brine, factory waste, salt solutions, weak acid, mineral oil,etcd. For centrifugal pump, mixer, agitator, stern tube. etc.
Technical data sheet
Material | Carbon and PTFE |
Temperature Range | -50 up to +280 oC |
Rotating | 20 bar |
Reciprocating | 100 bar |
Static | 200 bar |
Shaft Speed | 0-25m/s |
PH | 0-14 |
Density | 1.3g/cm3 |
Product information& Terms of business | |||
| NO | Item | Content | Optional |
| 1 | Material | carbon and PTFE | |
| 2 | Port | Ningbo port | Shanghai port |
| 3 | Size | Any size can avalible as customer's requestment | Any size can avalible as customer's requestment |
| 4 | MOQ | 20 kilograms | Based on negotiation |
| 5 | Delivery terms | Normally 15-30 days | according to the quantity |
| 6 | Payment | T/T | 30% paid in advance,70% paid against B/L copy or we can discuss before place order |
| 7 | Packing | Packing by carton/wooden cases | according to your request |
