DC Welding Machine
- NINGBO SHANGHAI
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | stonote ruiling | Model Number | MMA-200 | |
| Arc Current | 200A | Pulse Frequency | 50/60HZ | |
| Pilot Arc Current | 200A | Rated Duty Cycle | 60% | |
| Motor Type | DC Motor | Dimensions | 290x240x135 | |
| Usage | welding stainless steel ,low carbon steel | Voltage | 220V/380V | |
| Certification | CE/CCC | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Advance Inverter IGBT technology.2.Portable ,energy saving .
3.Hot start ,arc force
Detailed Product Description

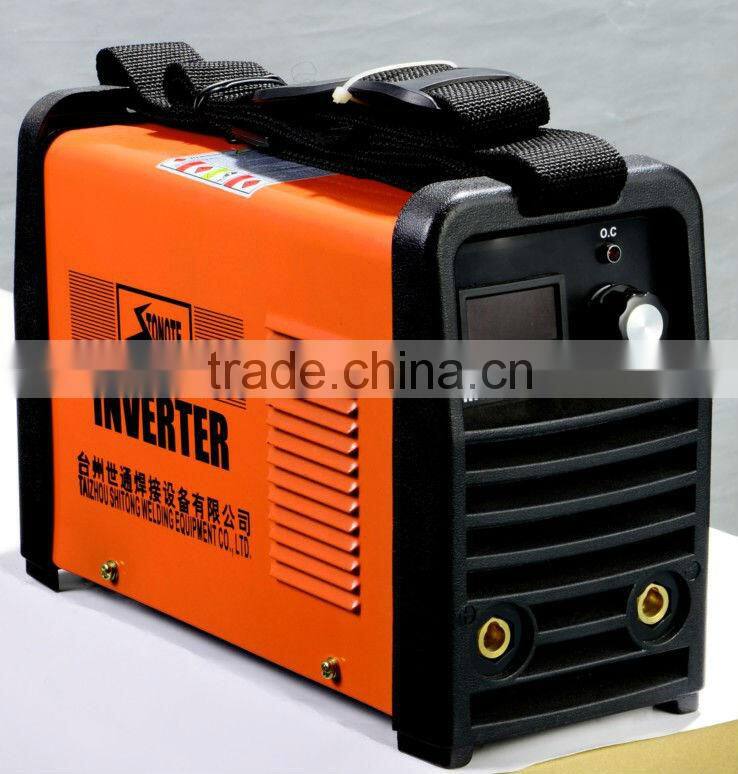

MMA welding machine (General)
Model No.: MMA-200(IGBT)
Details:

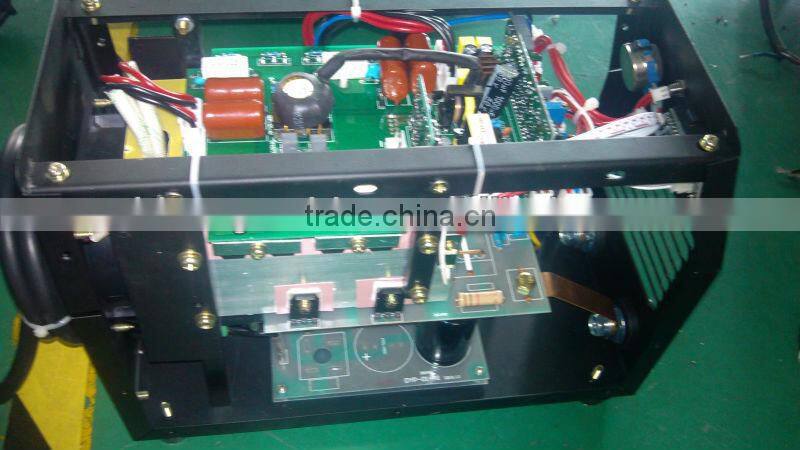

1.Equipped with imported IGBT of high power to output high welding current.
2.The Tri-proof(water, dust and eroding proof) cooling system raised the reliability and duty cycle of the key components.
3.The duty cycle is higher than 50% when the temperature of the operation surrounding is around 400C.Capable to operate outdoors.
4.The maximum output efficiency is 85%. By using the advanced electro-circuit for power factor compensation, the max power factor could be as high as 0.93.
5.With the functions of Arc-Force, adjustable Hot-Star current. With digital display of the welding current and remote control for option.
6.Wide used in the operations of petrol pipe line construction, chemical industry, automobile industry, ship building, boiler building , power plant construction, nuclear power plant, construction, aviation, war industry, industrial equipment, bridge guiding and operations in The 016-17utdoors.
Main Parameters Table:
Input voltage(V): | 220 | Power factor: | 0.93 | Rated input current (A): | 28 |
Max welding rod Diameter(mm): | 3.2 | Output current (A): | 30-200 | Housing protection grade: | IP21 |
Rated output volt(V): | 28 | Rated output current(A): | 140 | Insulation grade: | F |
Max welding thickness(mm) | 6 | Duty cycle(%): | 60 | Efficiency (%):: | 85 |
Weight(kg): | 6.3 | Dimensions (mm) | 290x240x135 | ||
Remarks: | Input voltage frequency should be 50/60Hz | ||||
Taizhou shitong welding equipment co., ltd specialized in R&D ,manufactureing high-tech products chain .the company was found in1999,there are 280 employees in total,21 Engineers and technicians ,front-line employees with secondary education .we are specialized in welding equipment ,has a strong marketing network ,and with service intergration.
