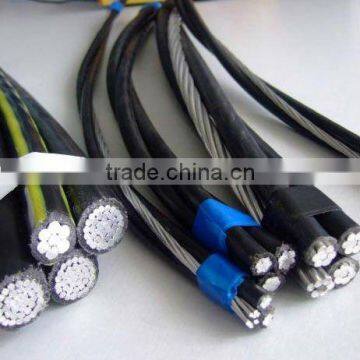

PERU ABC 0.6/1kv cable 3x50mm+1x16mm+1x25mm

FOB Price

US$ 0.1 - 1 / Meter

1000 Meters(Min. Order)

Port Qing Dao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	Jiapu
Model Number	JKLYJ	Insulation Material	XLPE
Type	Low Voltage	Application	Overhead
Conductor Material	Aluminum	Jacket	Other, XLPE

Product Description

Specifications

Low voltage PVC insulation ABC cables
1.voltage:low voltage
2.insulation:XLPE
nductor:aluminium
4.SABS certificate

Low voltage XLPE insulation ABC cables

Specifications

Application:
Suitable for ac rated voltage 35 KV and below the overhead power lines, in towns, high-rise buildings and forest region and safety requirements of higher applications.

Use features:
(1) the rated voltage is 1, 10 KV.
(2) the cable long-term work temperature:
Polyvinyl chloride (PVC), polyethylene (PE) insulation should not more than 70 °C;
Crosslinked polyethylene (XLPE insulated) should be no more than 90 °C.
(3) when a short circuit (the longest duration not more than 5 seconds) cable conductor of the highest temperature;
PVC insulated and not more than 160 °C;
Polyethylene insulating not more than 150 °C;
Crosslinked polyethylene insulating not more than 250 °C.
(4) the cables temperature should not be not less than 20 °C.-
(5) permissive bending radius of cable:
* 1 KV cable
Cable diameter D < 25 mm...... 4 D;
Cable diameter D quartile 25 mm...... 6 D.
* 10 KV cable
Single core cable 20 (D + D) plus or minus 0.5%.
Many core cable 15 (D + D) 0.5%.
Type: D-the actual diameter of cable (mm);
D-the actual diameter conductor (mm).

The product specification:

MODEL		Number of cores	Rated voltage KV
Copper	Aluminum core		1	10	35
Copper	Aluminum core		Nominal section mm²
JKV JKY JKYJ	JKLV JKLY,JKLY/Q JKLYJ,JKLYJ/Q	1	16~240	—— 25~300 25~300	—— —— 25~300
JKV JKY JKYJ	JKLV JKLY JKLYJ	2,4	10~120	——	——
JKYJ	JKLYJ,JKLYJ/B	3	——	25~300	——
——	JKLV JKLY JKLYJ	3+K(1)	10~120	——	——
JKYJ	JKLYJ JKLYJ/B	3+K(A)or 3+K(B)	—— ——	25~300 K=25~120	——
